Chairside Crown and Bridge Case Setup

Patient Selection

1. On your Chairside Home screen Click “Start”
2. Begin Typing Patients First and Last Name
   • If the Patient is already created, Click “Select” next to their name on the drop down menu.
     1. If this is a refabrication Click the relevant case to refabricate and Navigate to Place Refabrication Order in Chairside Article
     2. If this is not a refabrication order, Click “order something new” at the bottom of the screen, then proceed to Product Selection
   • If the patient has not been created, proceed to step 3
3. Finish Typing the Patients Full First and Last Name
4. Select the relevant value from the “Gender” drop down
5. Enter patient’s birthday
6. Click “Create and Continue”

Product Selection

1. Select “Fixed Restorations”
2. Choose the relevant restoration type
   • Crown
   • Inlay
   • Onlay
   • Veneer
   • Bridges

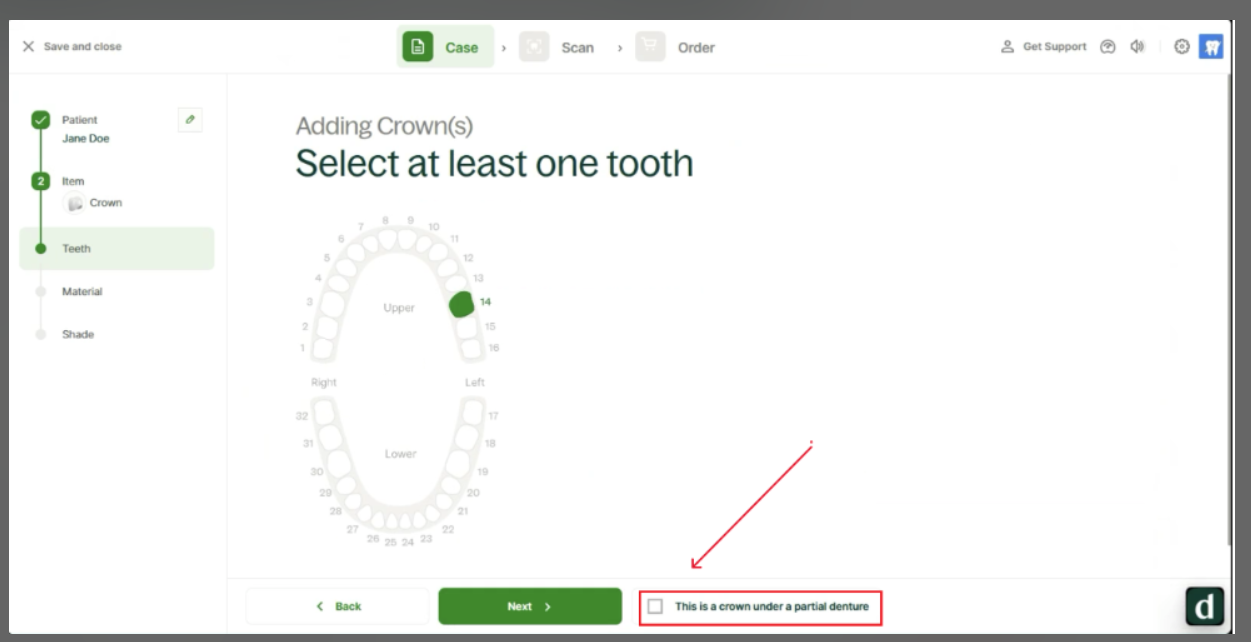

3. Click on the abutment teeth to be restored
   • If restoring a bridge, select the relevant pontic areas and/or Maryland Bridge Wings
4. If this restoration is to be fit under an existing Partial Denture - Click the “This is a crown/bridge under a partial denture” button at the bottom of the screen
5. Choose the desired restoration material
   • If multiple restorations are being restored use the Toggle switch on the right side to keep all restorations the same material.
   • If using different materials, unclick the toggle switch and select materials for each tooth individually
     • Note: Layered products are not available for restorations under partials/appliances.


Photos

For anterior restorations, an option for photos will appear.

If restoring a posterior restoration, proceed to shade selection.

• If you wish to proceed with out photos, click “Skip for now” on the bottom of the screen

If you don't currently have photos:

1. Using your cell phone, scan the QR Code
2. Follow the instructions to add clinical photos directly to the case
   • These photos will not save on your device.

Have photos on mobile device

1. Click “Prefer to use the old experience?” link
2. Scan the QR
3. Select the relevant photos and click upload

Have photos on Scanning Laptop

1. Click “Upload from computer” on the bottom of the screen
2. Select the relevant photos for each title category


Shade Selection

1. Choose a Base Shade in Vita Classical or Vita 3D Masters
2. If desired add Gingival, Incisal, or prep Stump Shades
   • If multiple restorations are being restored use the Toggle switch on the right side to keep all restorations the same shade.
   • If using different shades, unclick the switch and select materials for each tooth individually

Final Stage

The last window gives you a couple more options for complex orders

1. If no other products are needed - Click “Start Scanning”
2. Click Add Nightguard to receive a $50 off nightguard with the order
3. Click Add another item to add additional restorations
