The AI Scan Review feature in Dandy Chairside helps you identify prep issues in real time—before sending your case to the lab. Using artificial intelligence, the system reviews your scan for undercuts, insufficient occlusal clearance, and other common prep issues that can affect restoration fit.
This gives you instant feedback while the patient is still in the chair, reducing remakes, eliminating adjustments, and improving patient satisfaction.
What AI Scan Review Does
After you complete your prep scan in Chairside, the AI automatically:
- Analyzes your prep in under 30 seconds
- Flags undercuts or clearance issues if detected
- Visually highlights problem areas on the 3D scan model
- Provides recommended next steps, such as refining the prep, adjusting the margin, or re-scanning
No manual activation is needed—AI Scan Review runs automatically once your prep scan is complete.
What You’ll See in Chairside

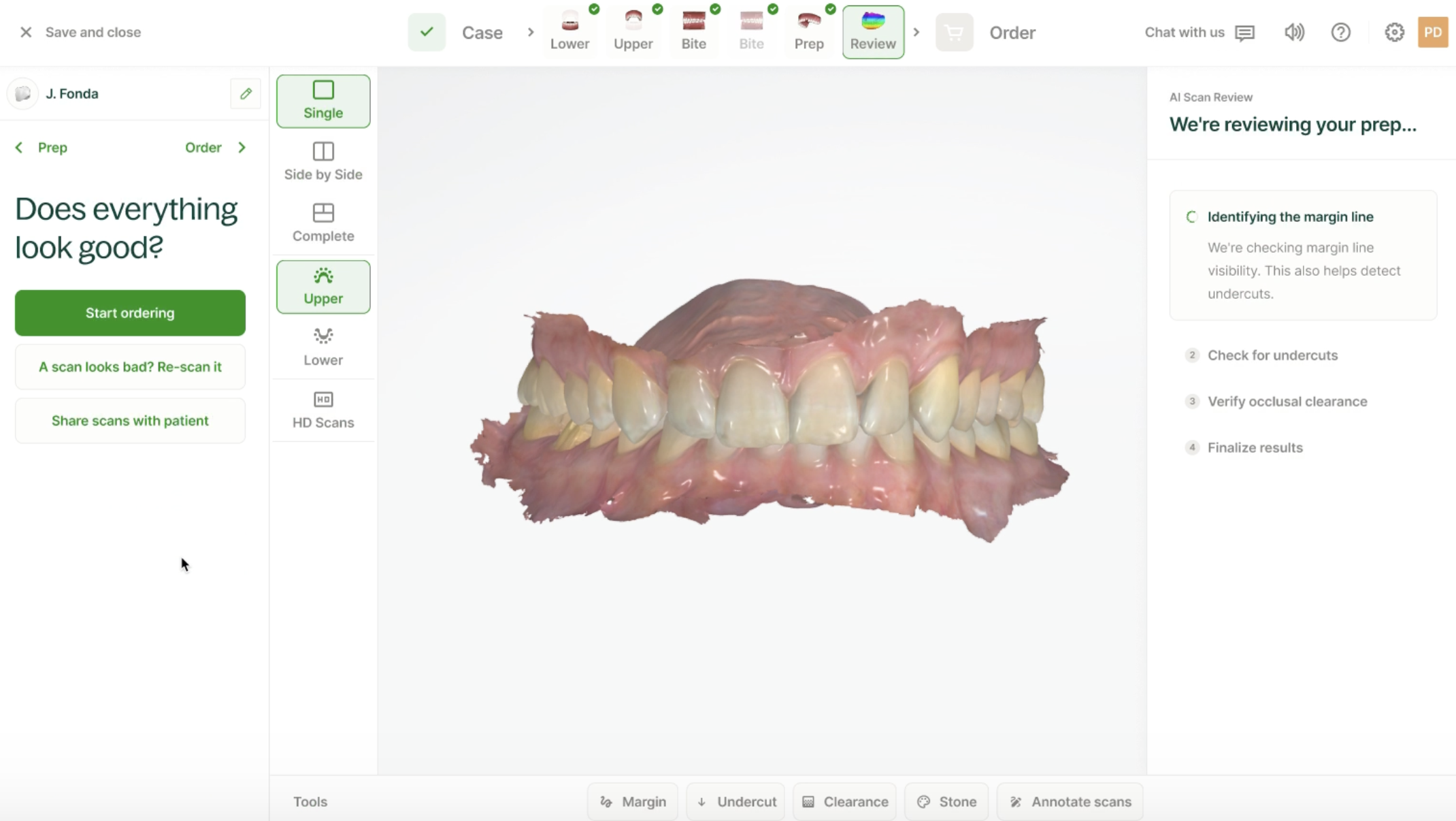

On the review screen after scanning your prep, you will see the AI Scan Review panel on the right side of your Chairside screen. It will automatically begin processing.
- A side panel on the Review screen appears with a summary of the issue and a link to review it more closely. (Figure 1)
- The affected area is shaded on-screen (purple shading indicates a possible undercut or insufficient clearance).
The AI provides step-by-step guidance and options to fix the issue:

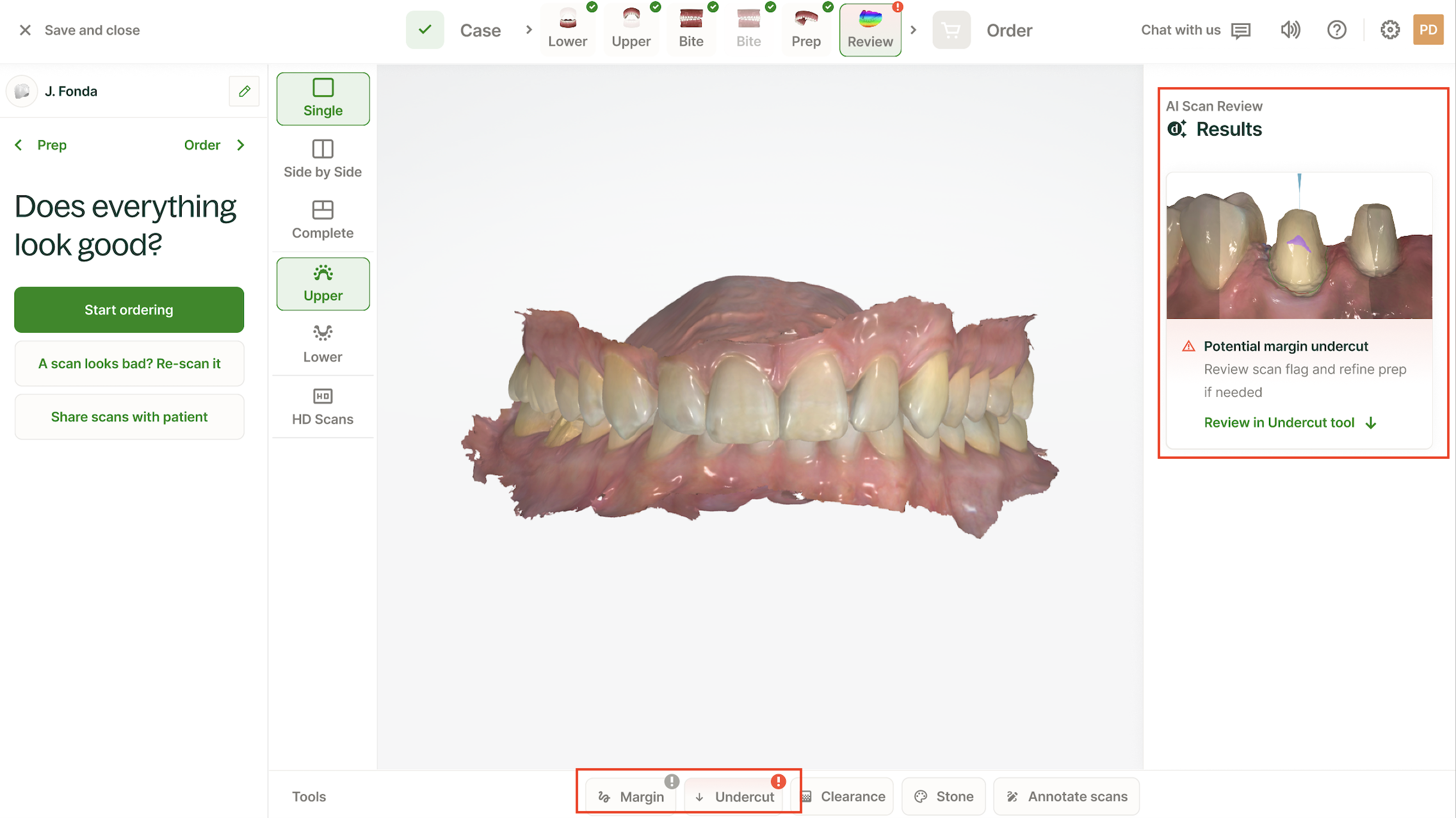

Figure 1
If a Potential Margin Undercut is Detected

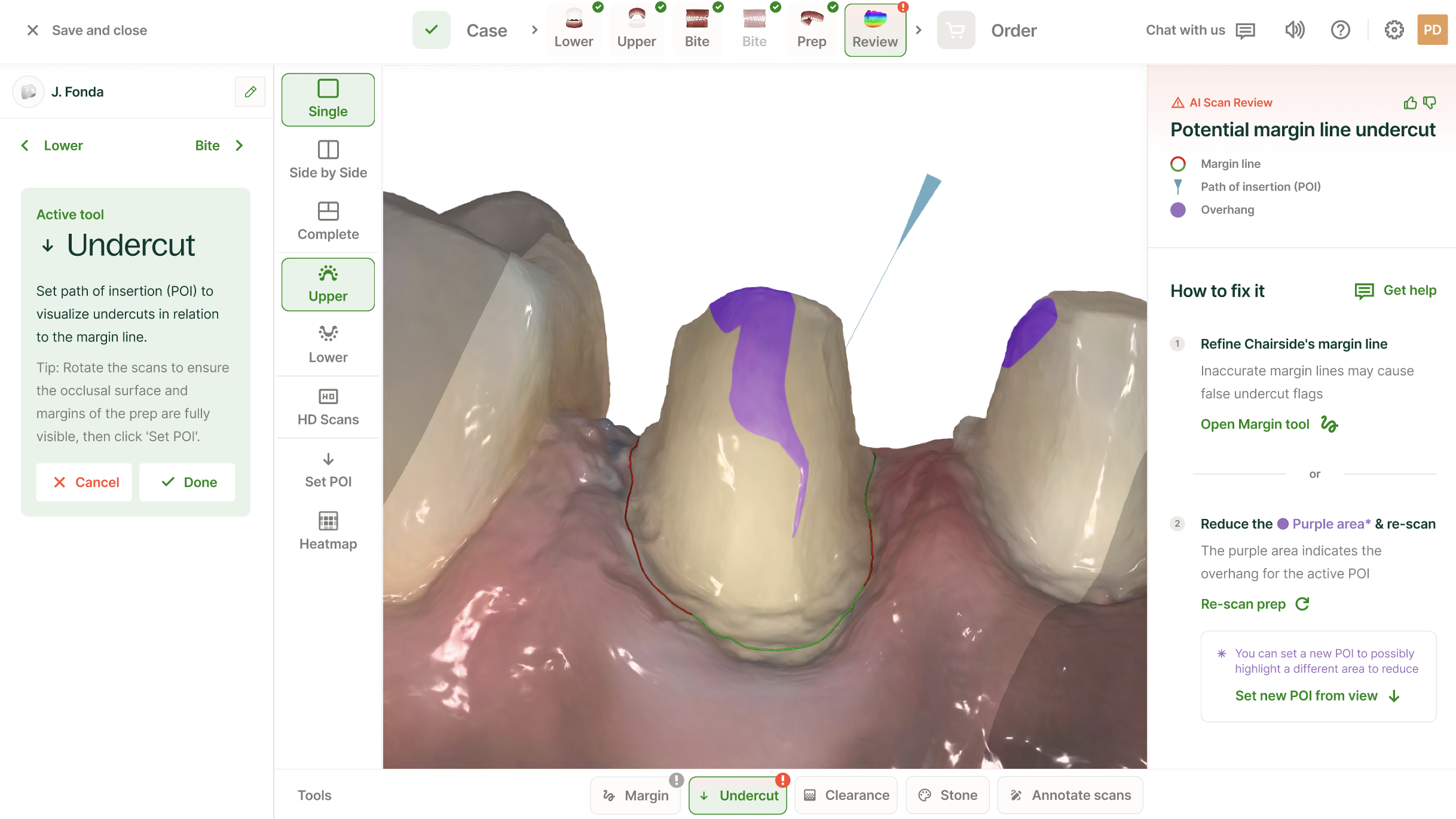

- You will see an alert 'Potential margin line undercut' (Figure 2)
- You will be prompted to review in the Undercut Tool, where you will have choices on how to proceed.
- Open the Margin Tool to refine the AI margin line.
- Adjust the Path of Insertion (POI)
- Re-prep & Re-scan if needed
- Proceed as-is (optionally adding a reduction coping)
Figure 2
Figure 3
If Insufficient Clearance is Detected
You will see an alert 'Not enough clearance - Reduce prep to ensure fit'.

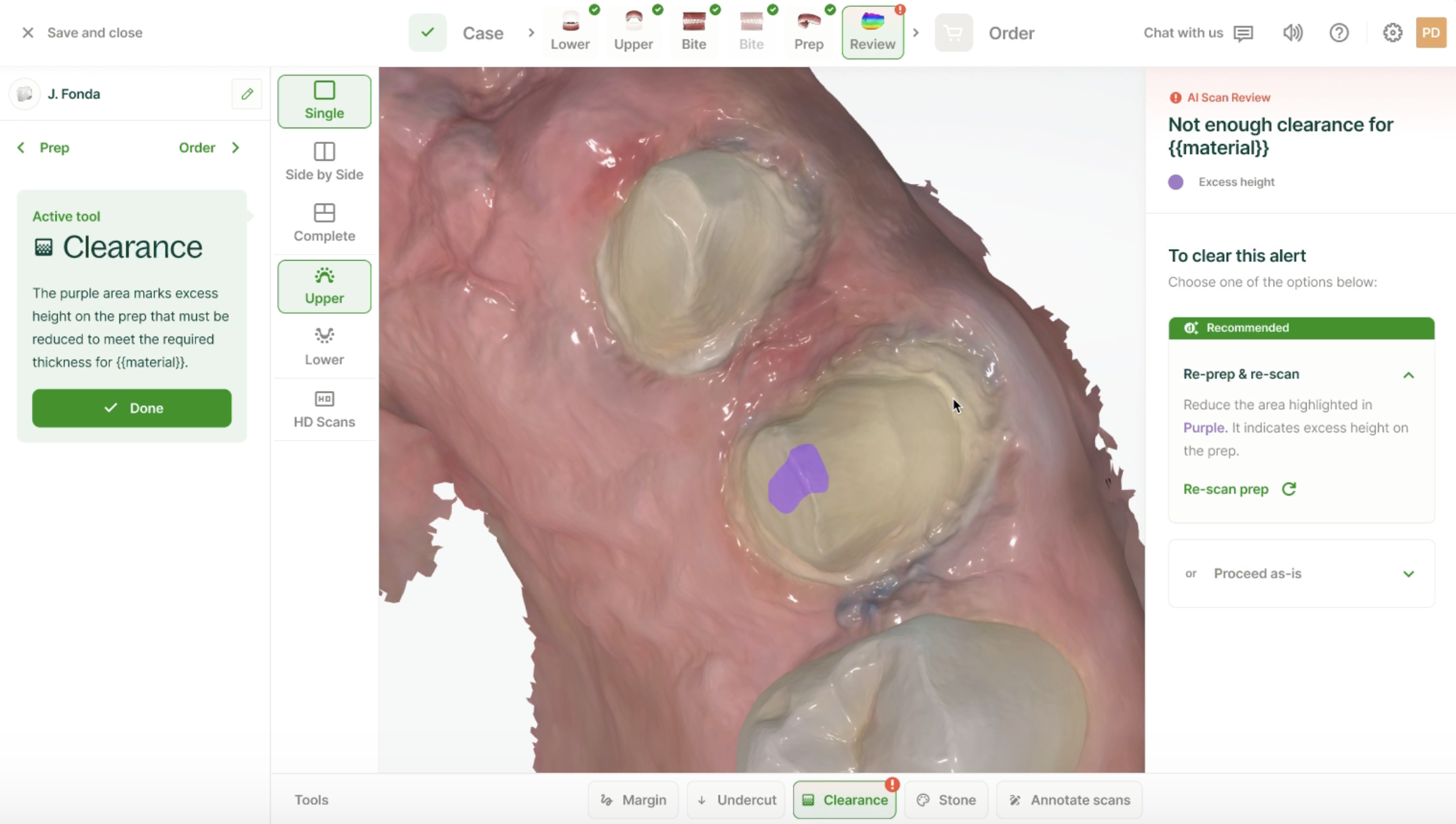

Select review in clearance tool and you will be brought to a screen where you see insufficient clearance. (Figure 4)
All clearance guidelines are material-specific. (ie. Zirconia, eMax, Metals, etc.)
Figure 4
When No Issues Are Detected
- You’ll see a green verification banner confirming your prep and scan are lab-ready. (Figure 5)
You can proceed to checkout confidently knowing your prep meets Dandy’s criteria for a precise, no-adjustment fit on delivery day.
Figure 5
Supported Cases
For this initial release, AI Scan Review is available for:
- Single-unit posterior crowns
- Tooth numbers:
- Upper: 1–5, 12–16
- Lower: 17–21, 28–32
- Materials: All supported posterior crown materials. Future updates will expand support to other indications and restorative workflows.
Tips for Best Results
- Keep margins smooth and visible.
- Maintain adequate reduction for the chosen material.
- Use AI feedback as a second set of eyes—it’s not a replacement for your clinical judgment, but a fast way to validate your prep quality.
- Ensure a strong internet connection for faster AI processing.
FAQs
How long does AI Scan Review take?
- Less than 30 seconds on average, depending on internet speed.
Do I have to turn it on?
- No. It runs automatically after you complete your prep scan.
Why don’t I see AI Scan Review on some cases?
- Currently, it’s only available for single-unit posterior crowns.
What if I disagree with the AI alert?
- You can proceed as-is. A reminder badge will appear during checkout, and you may choose to add a reduction coping for insurance.
Can I edit the AI-generated margin line?
- Yes. You can modify or redraw the margin at any time. If the system has difficulty identifying a clear margin line, a yellow banner will appear.
Summary
AI Scan Review provides real-time, clinically relevant feedback to ensure your crown preps are ready for fabrication. By flagging potential issues like undercuts or limited clearance, it helps you reduce remakes, save chair time, and deliver better-fitting restorations every time.
