The Dandy Cart is an all-in-one chairside touchscreen workstation that brings scanning, patient education, and case review directly to the chair. Its large 21.5” HD display allows patients to clearly see their scans and smile simulations, helping build trust through visual understanding. A powerful onboard computer keeps scans fast and smooth, so appointments stay on schedule. Built-in Chairside software with AI and Live Scan Review helps ensure restorations fit right the first time, reducing remakes and chairtime.

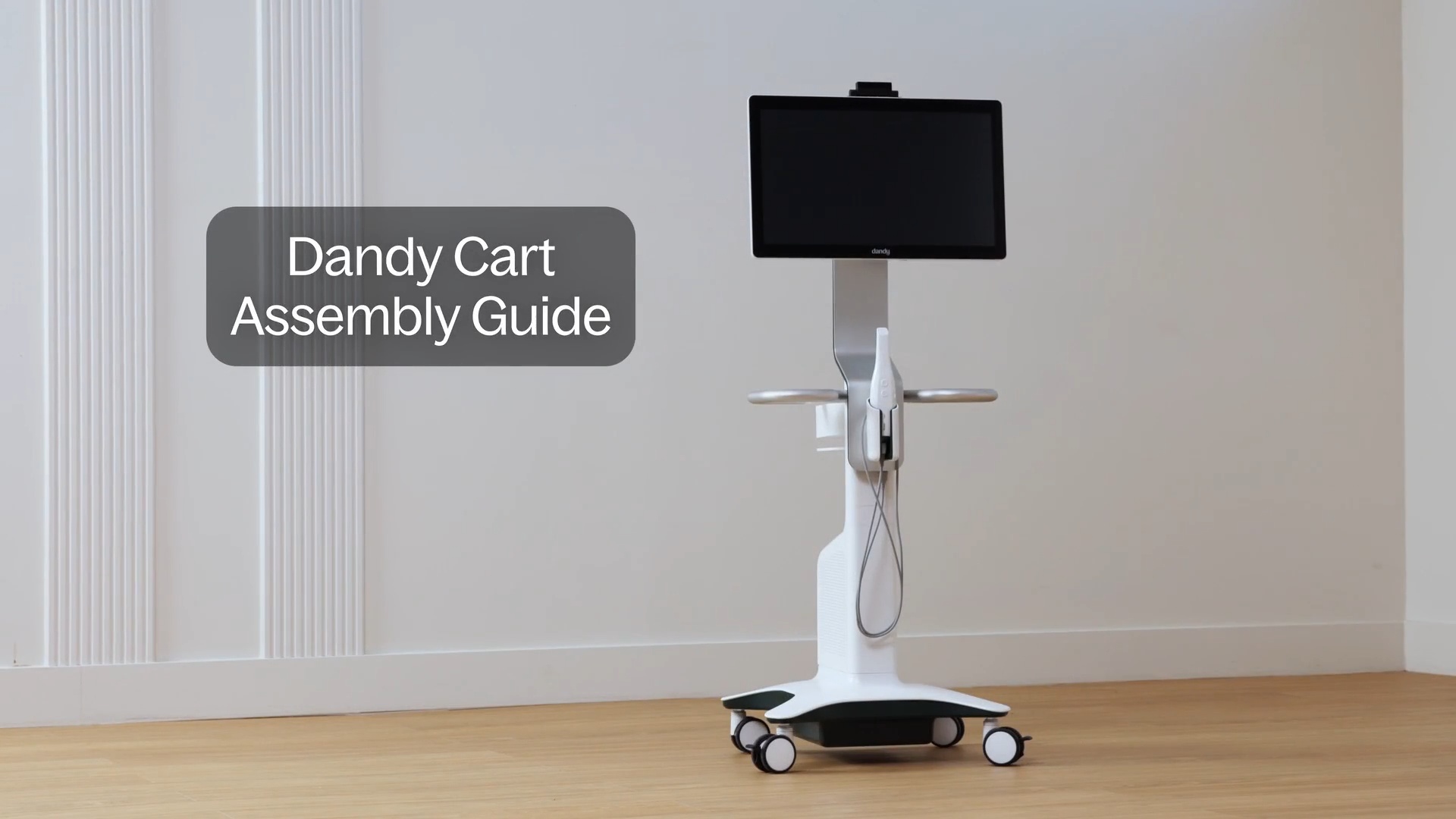

Assembly Instructions
To view assembly instructions in their entirety with visual examples, choose your equipment configuration from the list:
- Dandy Vision + Dandy Cart Setup Guide
- Dandy TRIOS Wireless + Dandy Cart Setup Guide
-
Dandy TRIOS Wired (1 cord) + Dandy Cart Setup Guide
- Use this version if your scanner does not plug into the wall for power.
-
Dandy TRIOS Wired (2 cords) + Dandy Cart Setup Guide
- Use this version if your scanner plugs into the wall for power.
Powering On the Cart
First-time setup
-

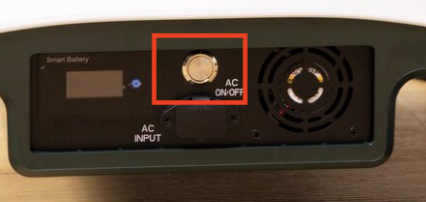

Press the battery power button
-

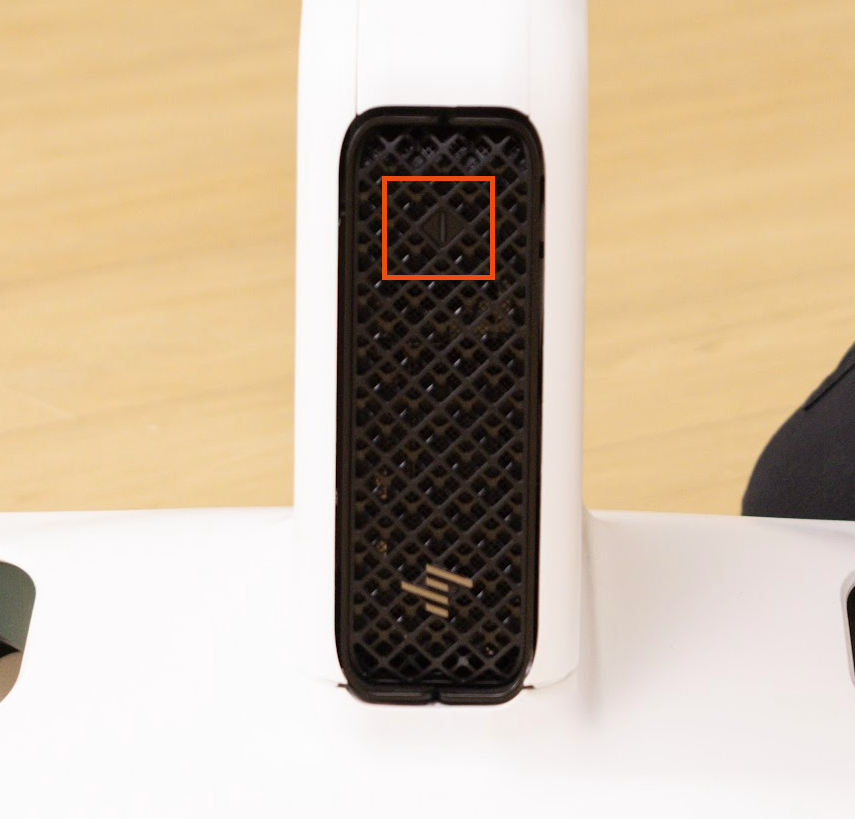

Press the computer power button
-

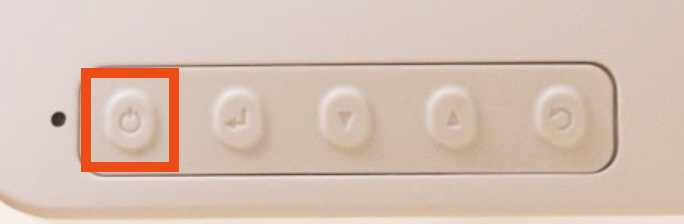

Press the monitor power button
Press Enter (no password needed)
-
Connect to Wifi by tapping
in the bottom right corner of the computer screen
In the WIFI selection menu, tapping the upper-left corner of the screen displays a list of available WIFI networks to connect to.
Access the on-screen keyboard by tapping anywhere on a text-box.
Double-Tap Chairside app on screen
Follow on-screen instructions
Daily operation
Power the cart on using the computer power button only
Do not toggle the battery or monitor switches during routine use
If the cart loses power completely, it will automatically boot once power is restored
Battery & charging
• Battery charge status is displayed in Chairside
• Battery life is approximately 3 hours during normal use with a recharge time of 1 hour and 30 minutes
• For extended procedures or frequent room-to-room movement, keep the cart plugged in when possible
Weekend power guidance
To preserve battery, please do not leave the cart plugged in over weekends or extended downtime. Power off the cart by turning off the HP button to preserving battery life.
You may hear the battery fan running even when the computer is shut down.
This is normal and expected behavior and supports proper battery cooling and performance.
Sterilizing the Dandy Cart
General safety guidance
• Power down the cart before sterilizing when possible
• Do not allow liquids to drip, pool, or enter the cart
• Do not spray cleaning solutions directly onto any surface
• Always apply cleaners to a cloth or wipe first
Use of protective barriers
High-touch or difficult-to-disinfect surfaces may be covered with single-use disposable barrier film or sleeves.
Barriers can be used on:
• Touchscreen
• Handles and side rails
• Keyboard or accessory surfaces
• Scanner cradle
• Any other frequently touched areas
Barrier Instructions
• Ensure the surface is clean and dry before applying the barrier
• Replace barriers between every patient
• Remove and discard without touching the underlying surface
If contamination underneath is suspected or protective barriers are not used, follow the chemical disinfection steps below:
Cart surfaces
• Use a soft, non-abrasive cloth
• Lightly dampen with a mild detergent
• Wipe surfaces gently and allow to dry fully
Screen & high-touch surfaces
• Use a lint-free cloth or approved disinfecting wipe
• Apply cleaner to the cloth or wipe first — never spray directly
• Avoid excess moisture
• Allow all surfaces to air dry completely
Approved sterilization & disinfecting products
Alcohol & peroxide
• Isopropyl alcohol solutions up to 70%
• Hydrogen peroxide–based wipes or cleaners
Metrex (CaviWipes® Family)
• CaviWipes™
• CaviWipes™ 2.0
• CaviWipes™ Bleach
• CaviCide™
• CaviCide1™
Other common dental products
• Super Sani-Cloth® Germicidal Wipes
• Sani-Cloth® Bleach Germicidal Wipes
• Sani-Cloth® AF3
• Oxivir® (hydrogen peroxide–based) products
• Quaternary disinfectant wipes
Follow each product’s labeled instructions, including recommended contact (dwell) time. Avoid overwetting surfaces.
Do not use
• Abrasive pads, sponges, or cleaners
• Alcohol concentrations greater than 70%
• Strong solvents, acids, or highly concentrated ammonia cleaners
• Steel wool, blades, or abrasive tools
Use of unapproved sterilization methods may result in cosmetic damage or reduced equipment lifespan.
Cart Specifications
Dimensions: 20" W × 19.5" D × 53" H
Weight: 72 lbs
Battery Life: Approximately 3 hours during normal use
Additional notes
This article does not replace clinical judgment or facility sterilization protocols.
Always follow your practice’s standard infection control procedures in addition to this guidance.
For more in-depth setup instructions, select your equipment configuration from the choices below:
