Overview: This article provides guidance on selecting the appropriate sleep apnea or snoring appliance based on patient preferences and clinical requirements.
Prerequisites
Before choosing an appliance, practitioners must ensure the following clinical requirements are met:
Sleep Study: A completed sleep study is required to determine the severity of the patient's condition.
Comprehensive Dental Exam: A full dental exam and complete patient records must be available.
Required clinical assessments
Clinicians must evaluate patient data before prescribing a sleep apnea device.
Sleep study requirements
Each patient must complete a sleep study before a dentist prescribes an intraoral appliance. The sleep study determines the level of severity the patient is currently experiencing. The prescribing dentist uses this information to determine the specific device needed for treatment.
Dental examination requirements
A dentist should perform a complete and comprehensive dental exam before prescribing a snoring or sleep apnea device. After the patient undergoes a comprehensive dental exam with full records and a sleep study, the dentist can accurately prescribe the treatment device.
Dandy sleep apnea appliance options
Dandy uses digital workflows and industry-leading materials to produce specific sleep apnea and anti-snoring devices. While the Herbst and the Nylon appliances may look different, the basic function of the appliances remains the same, and they achieve similar clinical results.

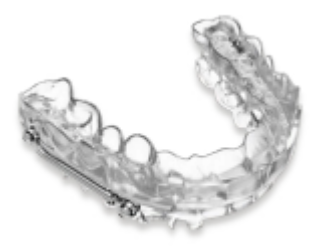

The Standard Acrylic Herbst MAD Appliance
The Standard Herbst Appliance is one of the primary offerings for treating sleep apnea through Dandy's digital workflow.
Key patient profiles and indications for the Herbst device include:
- CPAP Intolerance: Patients who struggle to tolerate or adhere to CPAP therapy.
- Bruxism (Teeth Grinding): Highly durable and robust, it allows for lateral jaw movement, making it a preferred option for heavy tooth grinders.
- Severe Snoring: Indicated for significant nighttime snoring alleviation.
- Anatomical Suitability: Ideal for patients with specific jaw relationships (such as Class II malocclusions) or those who experience a strong gag reflex with other oral devices.

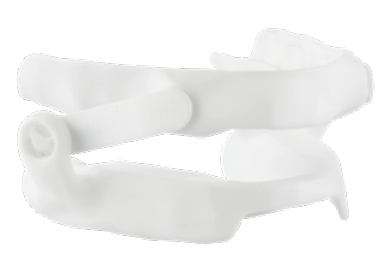

The Preferred Nylon Sleep Appliance
The Preferred Appliance is a traction-style advancement system designed to encourage mouth closure during sleep while supporting nasal breathing. The appliance is especially beneficial for patients with mouth breathing tendencies, TMJ sensitivity, or those seeking a durable nylon alternative with greater titration range and adjustability.
Patient Profile & Anatomical Indications
- Mouth Breathing / Nasal Resistance / Open Mouth Tendency: The device accommodates this by promoting a lip seal while still allowing for speech and drinking.
- Large Tongue: Design maximizes available tongue space.
- Small Mouth: Compatible with smaller oral anatomy.
- TMJ Sensitivity or Pain: Employs a traction-based design to minimize TMJ and muscle strain, resulting in 10% less stress.
Device Design & Titration Mechanics
- Titration Alignment: Aligned with the occlusal plane. This minimizes the risk of TMJ issues, morning headaches, and unwanted tooth movement by reducing stress by 30%.
-
Pull Titration Mechanics:
- The shorter the rod, the more protrusive the jaw becomes.
- Forces are applied on the Maxillary (Mx) anterior toward the lingual side, and the Mandibular (Md) anterior toward the labial side.
- Propulsion: Optimized for cases where a greater propulsion capacity is needed.
- Occlusal Contacts: Designed for no premature posterior contact and no incisor contact.
-
Dental Fragility Accommodations: Suitable for patients with:
- Absent, fragile, or short upper molars.
- Absent, fragile, or short lower canines and/or premolars.
Minimum Tooth Requirements (Per Quadrant)
⚠️ Critical Fit Criteria: The patient must meet the following dental thresholds to support the appliance:
-
Maxillary (Upper) Arch:
- Must have a canine OR 1st premolar...
- Plus at least 2 other posterior teeth.
-
Mandibular (Lower) Arch:
- Must have at least 1 molar...
- Plus at least 2 other teeth (chosen from canines or other posterior teeth).

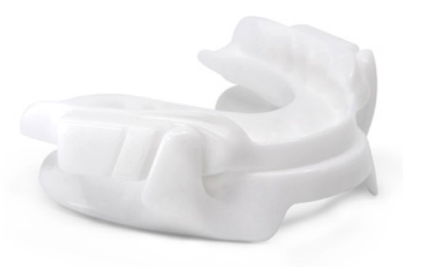

The Freedom Nylon Sleep Appliance
The Freedom Appliance is a highly accurate and effective device available for anti-snoring and sleep apnea treatment, and is made from lightweight metal-free nylon.
Patient Profile & Anatomical Indications
-
Posterior Crossbite: Suitable for this anatomy.
- Design Note: The anterior position of the X3 triangle is less extended towards the cheeks compared to the CLASSIC, which has a more posterior position.
- Desire for Mouth Mobility: Ideal for patients who want the freedom to open their mouth. The triangle is angled at 20°, which allows for both speech and drinking.
-
Dental Fragility Accommodations: Suitable for patients with:
- Absent, fragile, or short upper canines.
- Absent, fragile, or short upper 1st premolars.
Device Design & Titration Mechanics
- Titration Alignment: Aligned with the occlusal plane. This minimizes the risk of TMJ issues, morning headaches, and tooth movement by reducing stress by 30%.
-
Push Titration Mechanics:
- The longer the clip, the more protrusive the jaw becomes.
- Forces are applied on the Maxillary (Mx) anterior toward the labial side, and the Mandibular (Md) anterior toward the lingual side.
- Treatment Plan Range: Must be compatible with a range of -1mm of backward movement to +5mm of advance.
- Occlusal Contacts: Designed for no premature posterior contact.
Minimum Tooth Requirements (Per Quadrant)
⚠️ Critical Fit Criteria: The patient must meet the following dental thresholds to support the appliance:
-
Maxillary (Upper) Arch:
- Must have a 1st OR 2nd molar...
- Plus at least 1 other tooth (premolar, canine, or other posterior tooth).
-
Mandibular (Lower) Arch:
- Must have a 1st OR 2nd premolar...
- Plus at least 2 other posterior teeth.
