What is AI Scan Review?

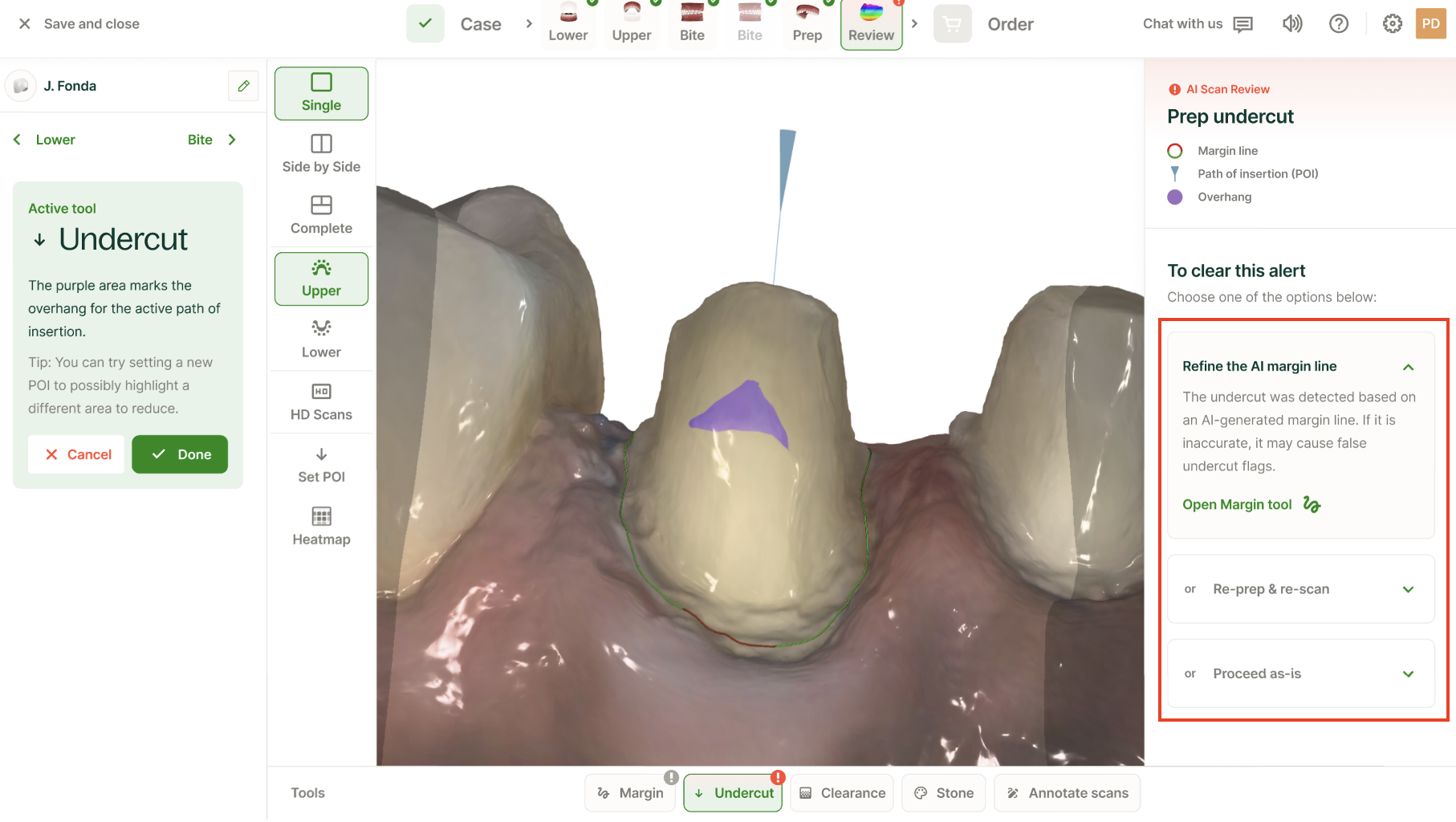

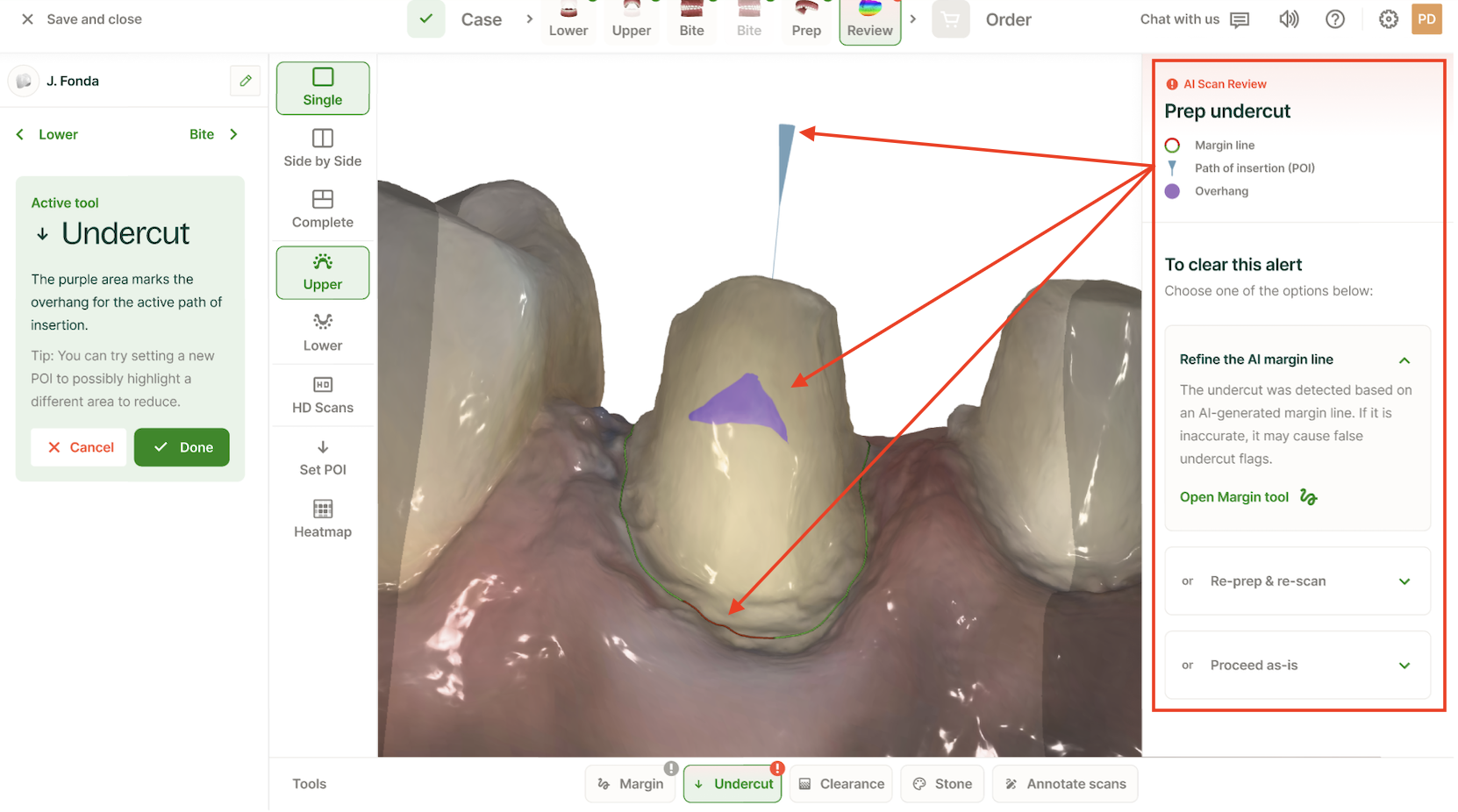

AI Scan Review is a tool in Chairside that automatically analyses preps and scans for potential issues, such as undercuts and insufficient occlusal clearance. If issues are detected, you'll receive step-by-step visual guidance on how to resolve. This is currently only available for single-unit anterior and posterior crown cases.
Watch how it works:
How to have your scans & prep analysed by AI Scan Review
Step 1: Start a single-unit crown case
- Set up a single-unit anterior or posterior crown case in Chairside.
- Note: AI Scan Review will only run for single-unit crown cases. Support for additional workflows is coming soon.
Step 2: Complete all required scans
- Capture needed scans by following prompts in Chairside, including:
- Lower arch scan
- Upper arch scan
- Bite scan
- Prep scan
Step 3: Proceed to 'Review' menu
- Once all scans are captured, navigate to the Review menu.

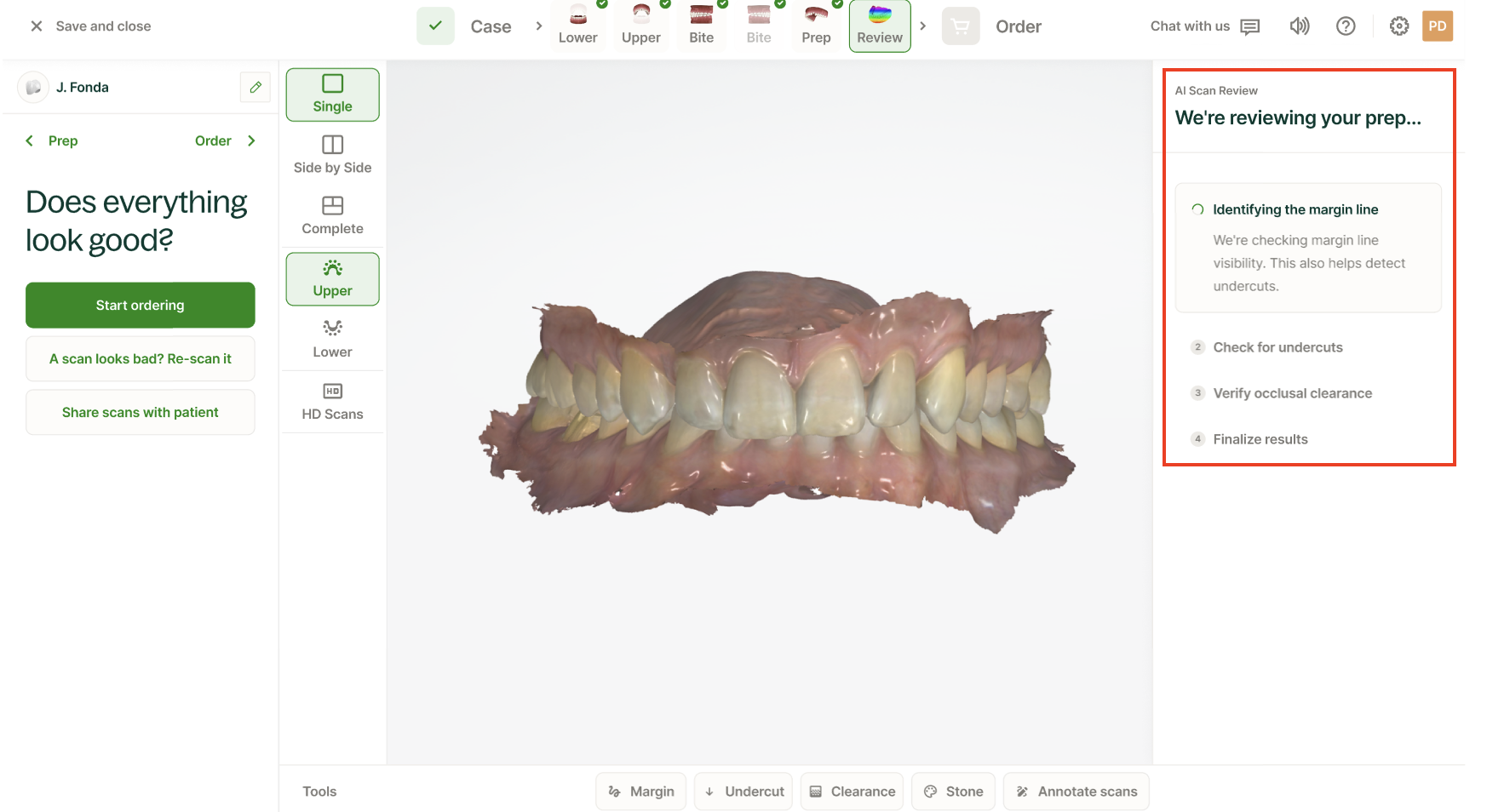

- AI Scan Review will begin automatically (shown below). No clicks needed to initiate.
- Note: analysis takes ~30 seconds. This may vary based on internet speed,
- What AI Scan Review checks on your prep:

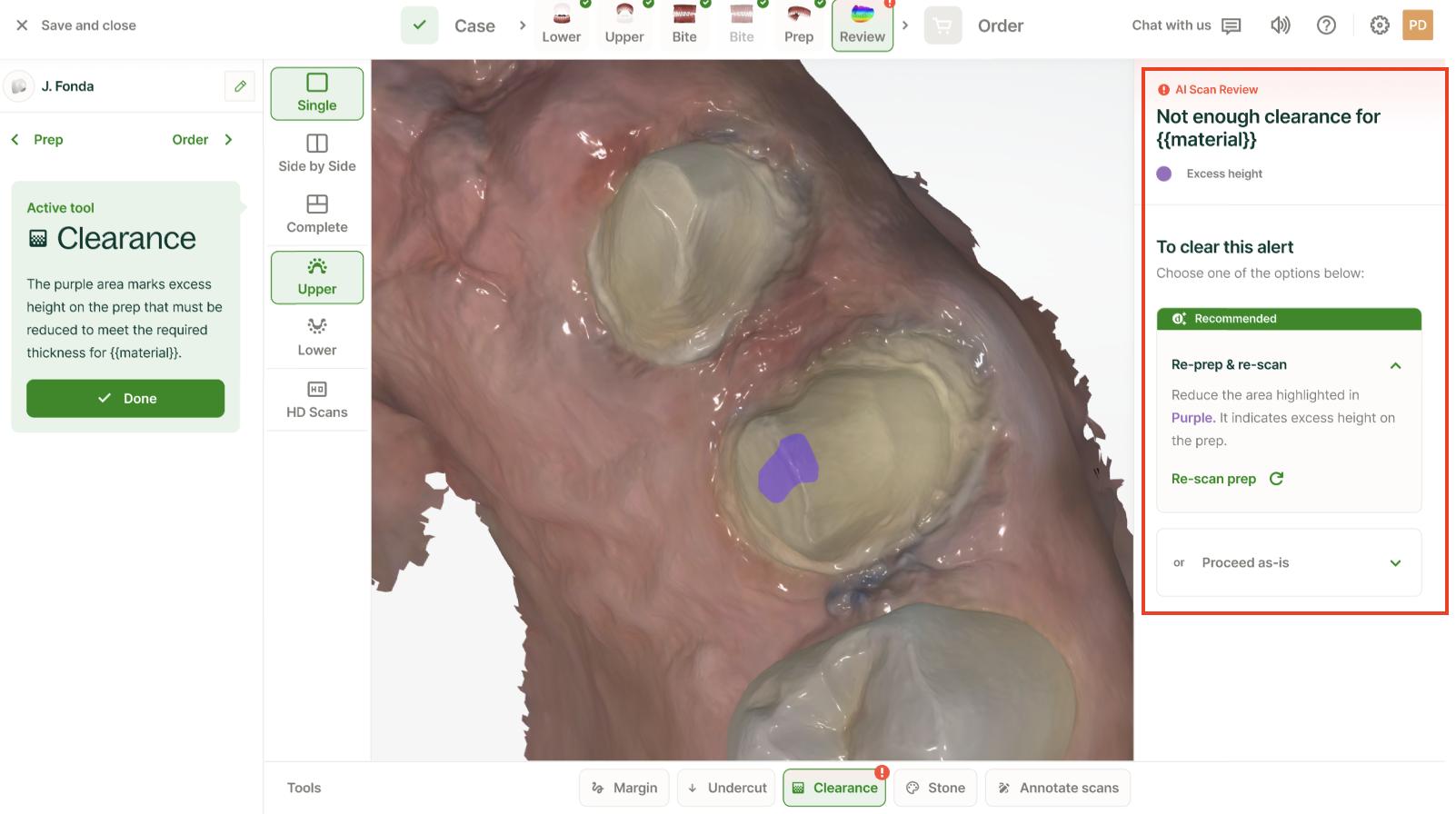

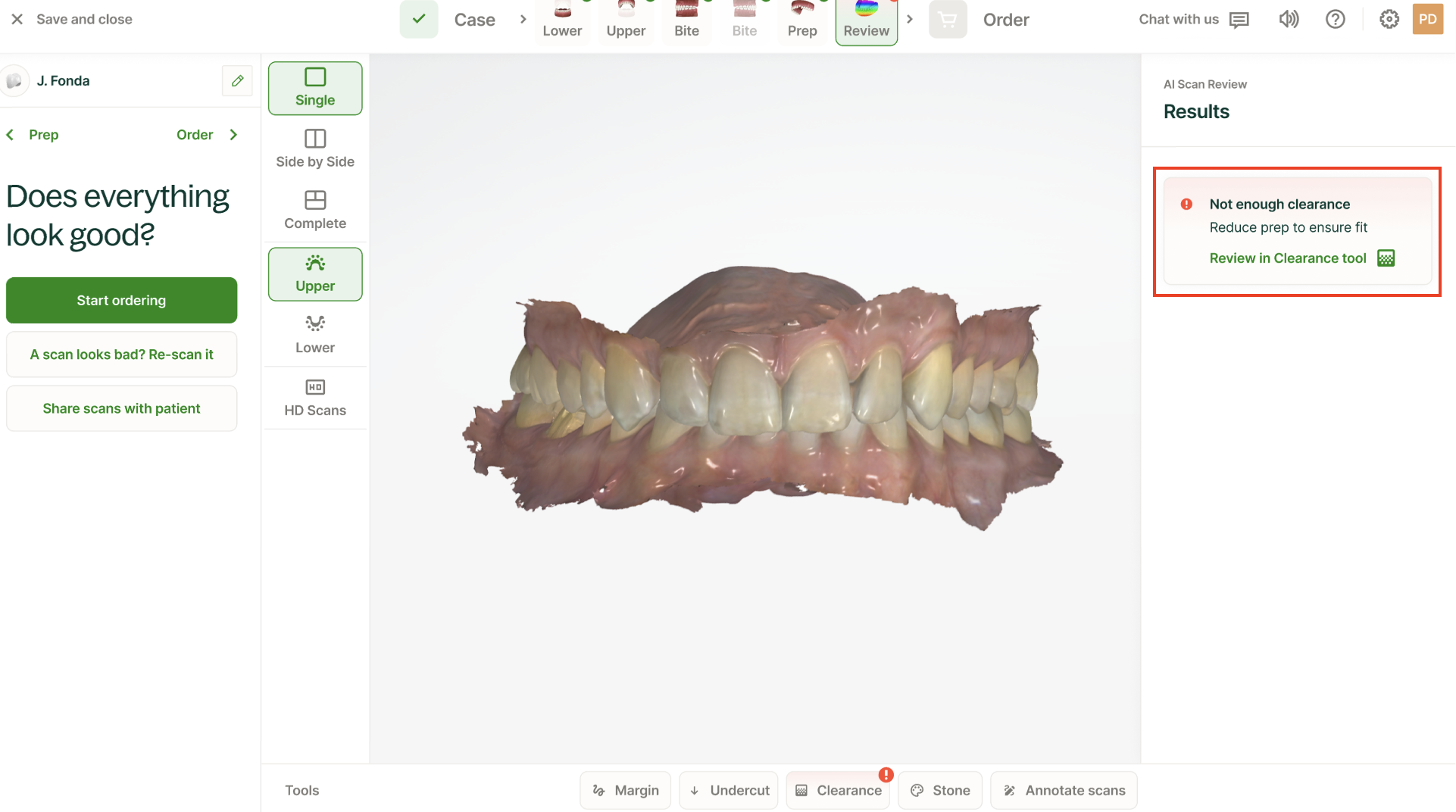

- Occlusal clearance
