This article provides steps to identify the 3Shape dongle and resolve "Can't Detect USB Dongle" errors in Chairside or 3Shape Unite software.
Identify the 3Shape dongle
The 3Shape dongle is a small USB device required to verify your subscription and run Trios or Unite software. To ensure the 3Shape dongle functions correctly, it must be plugged into a USB port on your Dandy laptop.
Distinguish the 3Shape dongle from the mouse receiver
It is common to confuse the 3Shape dongle with the wireless mouse receiver. Use these identifiers to tell them apart:
-

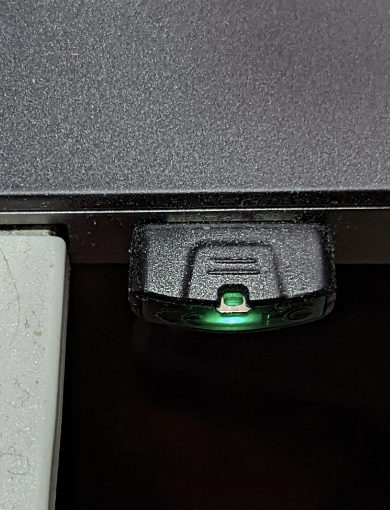

3Shape dongle: Features a transparent casing that emits a green light when connected to power.
-

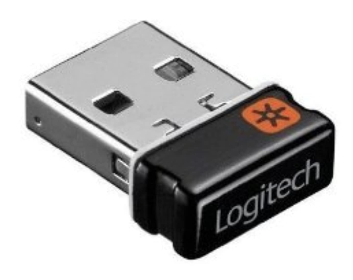

Wireless mouse receiver: Typically a solid black or grey plastic piece with no light.
Resolve dongle detection errors

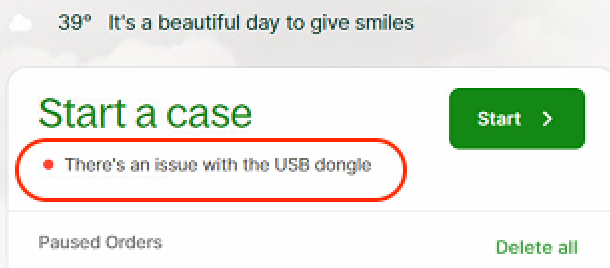

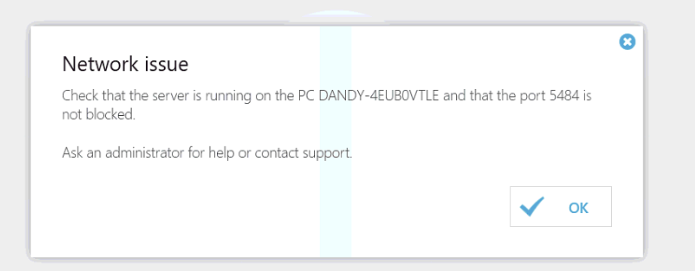

If the software cannot detect the 3Shape dongle, you will see a "There's an issue with the USB dongle" error in Chairside or a "Network Issue" error in Unite. Follow these steps to restore the connection:
Perform a physical connection check
Verify the 3Shape dongle is plugged directly into a USB port on the laptop.
Check for a green light on the 3Shape dongle.
If the green light is missing, try a different USB port.
Update the dongle via Local Host
If the
