⚠️ Note: This feature is currently part of a limited release and only available to select Dandy customers for testing and feedback. Some tools discussed in this article may not be available to you today, but will be in the future. To stay up to date on our latest innovations, visit and bookmark our What’s New Hub.
Watch how it works:
How to have your scans & prep analysed by AI Scan Review
Step 1: Start a single-unit crown case
- Set up a single-unit anterior or posterior crown case in Chairside.
- Note: AI Scan Review will only run for single-unit crown cases. Support for additional workflows is coming soon.
- Click here for a step-by-step walkthrough of the crown workflow.
Step 2: Complete all required scans
- Capture needed scans by following prompts in Chairside, including:
- Lower arch scan
- Upper arch scan
- Bite scan
- Prep scan
Step 3: Proceed to 'Review' menu
- Once all scans are captured, navigate to the Review menu.

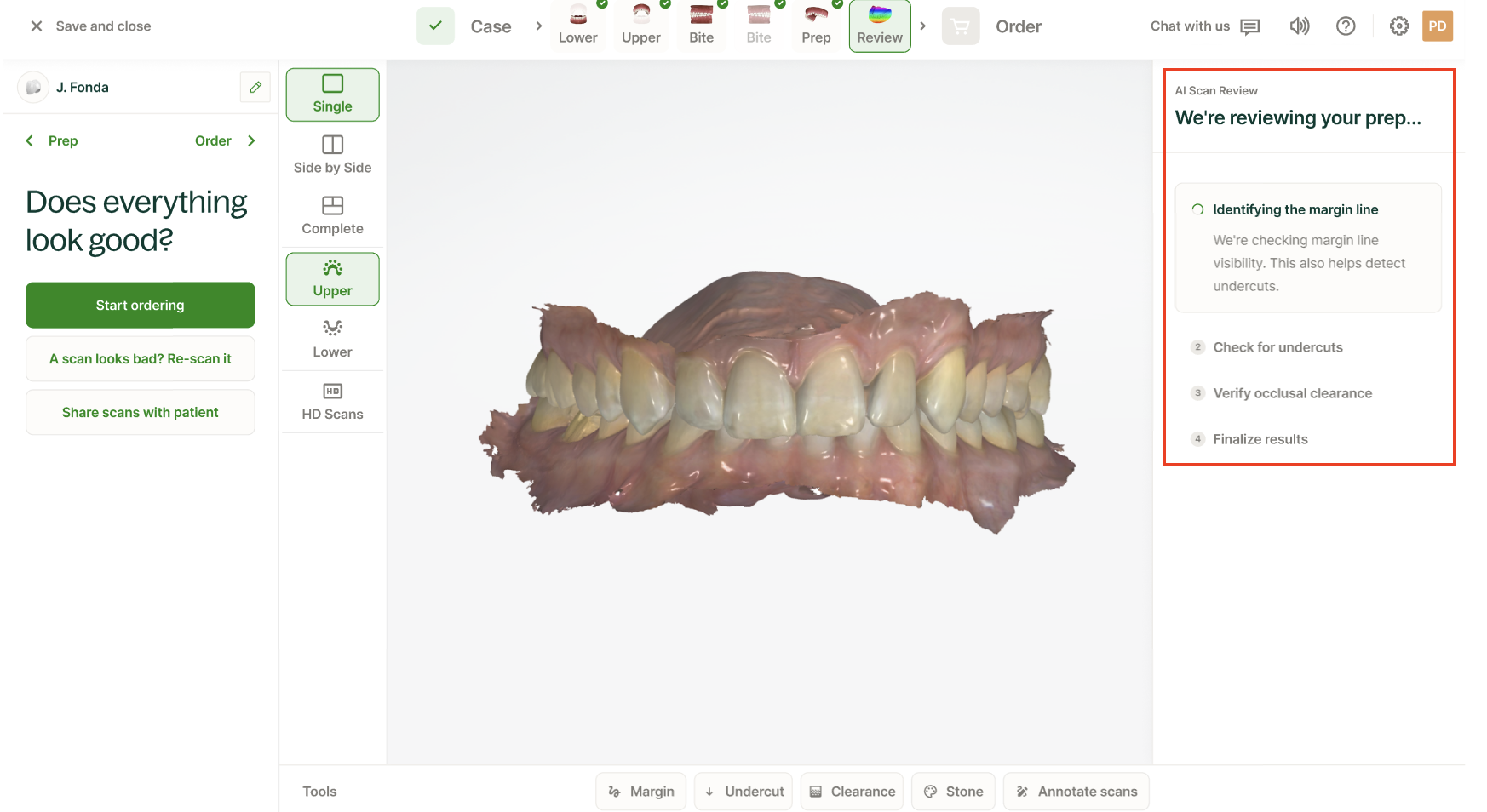

- AI Scan Review will begin automatically (shown below). No clicks needed to initiate.
- Note: analysis takes ~30 seconds. This may vary based on internet speed.
- What AI Scan Review checks on your prep:
- Occlusal clearance
- Undercuts
- Margin line visibility (to generate a proposed margin line)
Step 4: View results

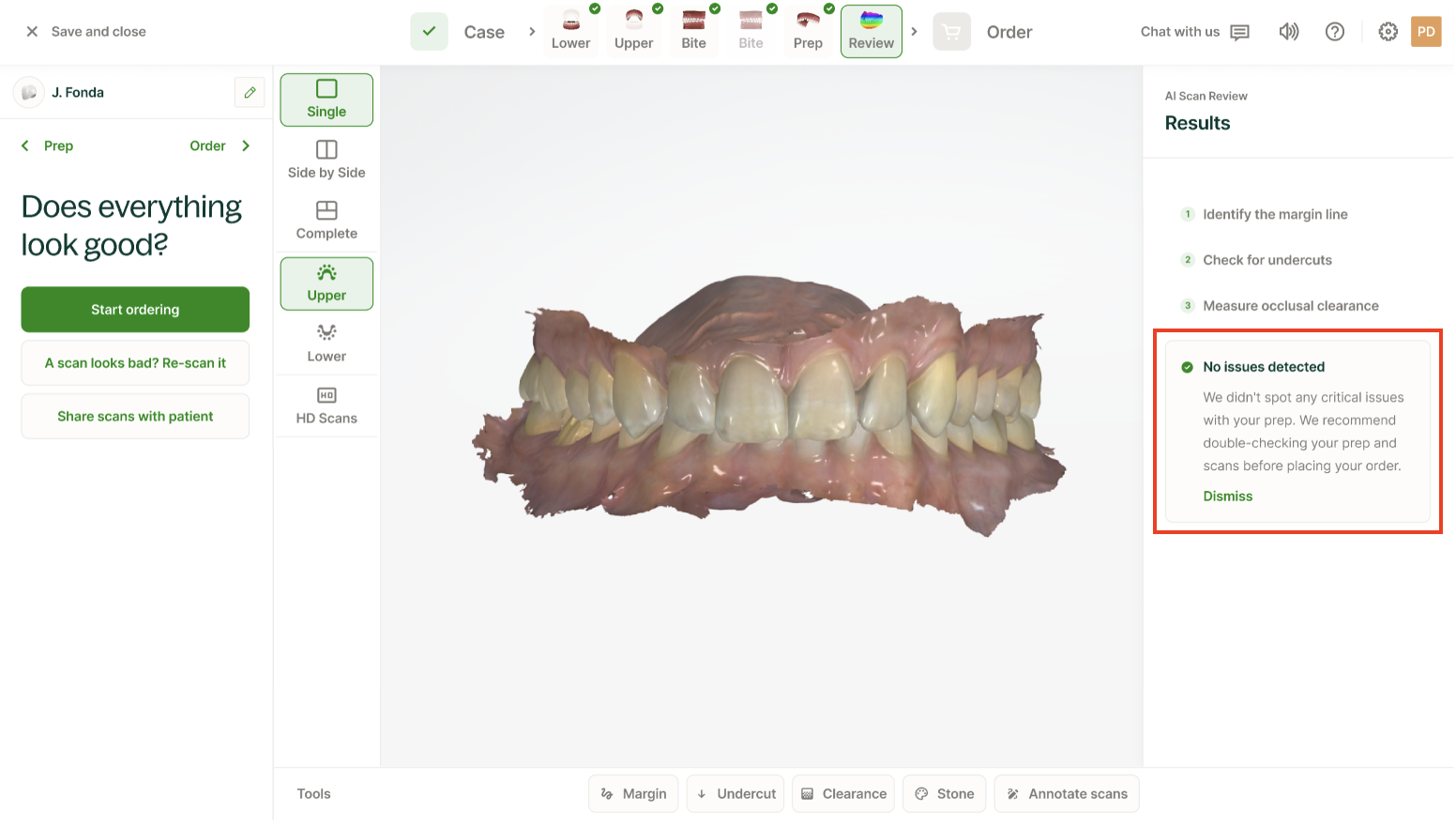

- If no issues are detected: a message confirms your prep is lab-ready.
- We recommend double-checking your prep and scans before placing your order even with this confirmation.

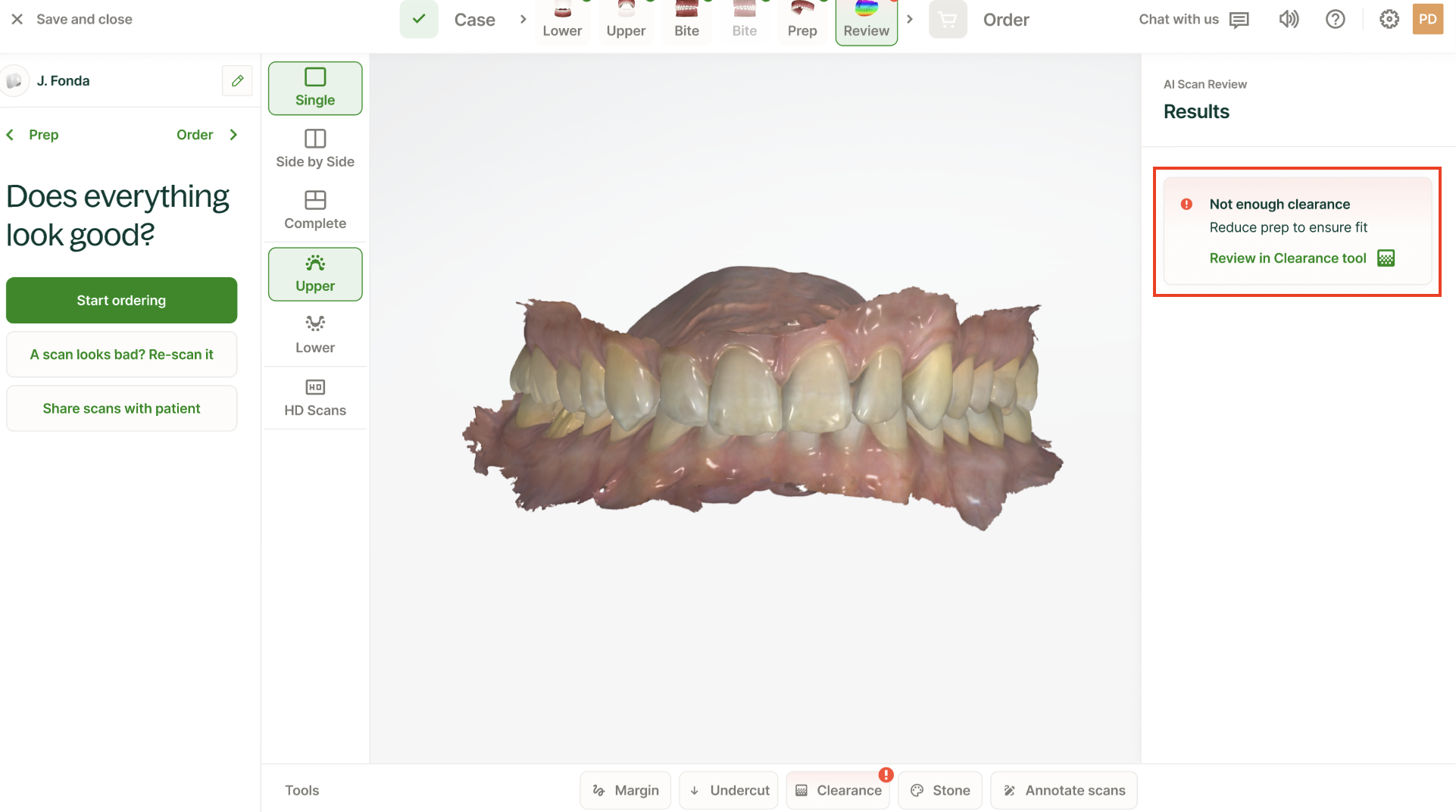

- If issues are detected: a notification appears on the right side of your screen with details and next steps.
Fixing an Occlusal Clearance Issue
Step 1: Click into the alert
- Click the clearance alert to see specific feedback and step-by-step guidance on how to fix the issue.

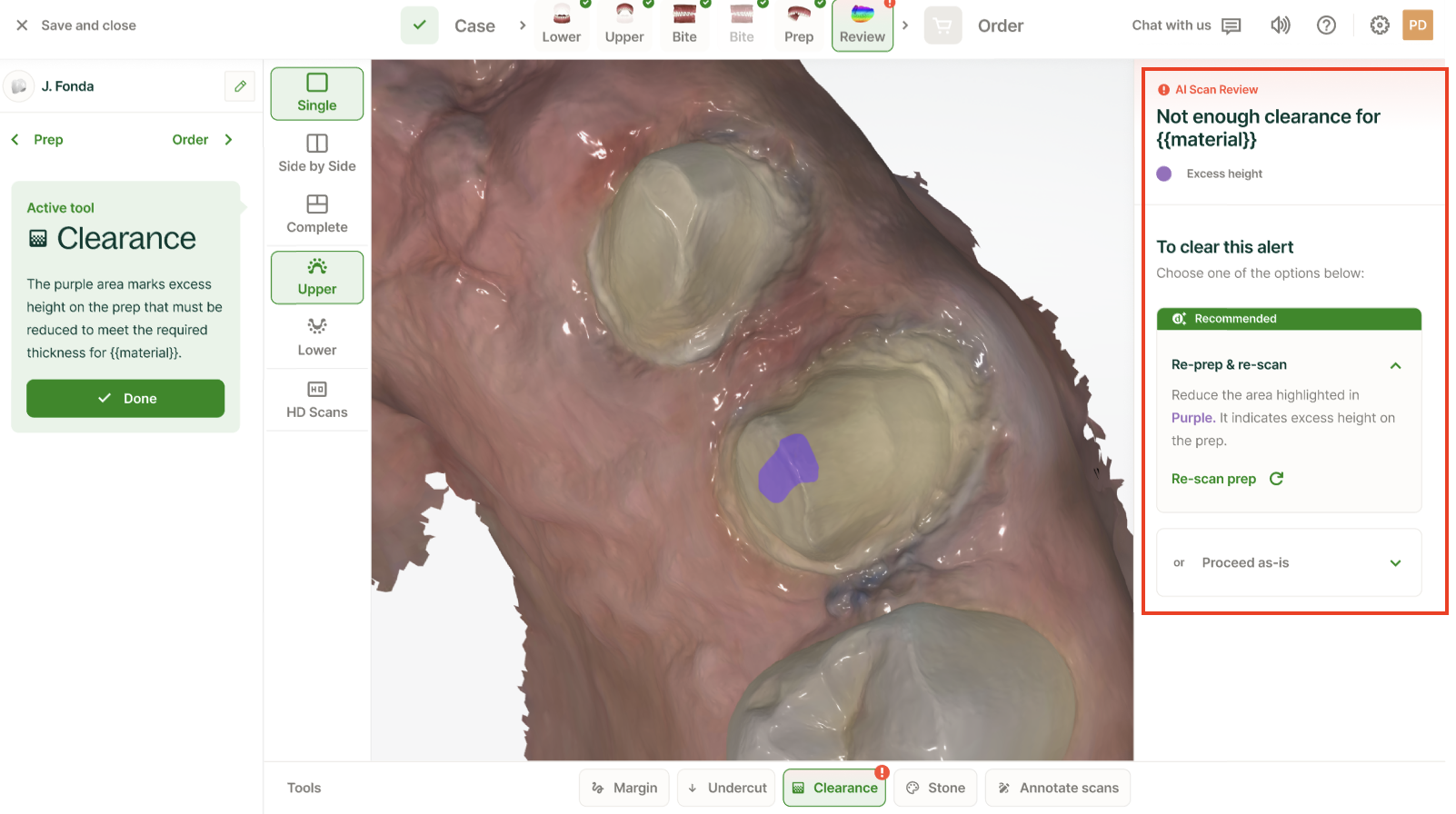

Step 2: Review areas of prep highlighted in purple
- If there’s insufficient clearance (based on your prep, material, and bite scan), affected areas will be shaded in purple.
Step 3: Choose how to proceed
- You can:
- Re-scan after refining the prep in your patient's mouth.
- Proceed as-is (additional information in Step 4 below).
- After a re-scan, AI Scan Review will re-check the prep and notify you if the issue is resolved.
Step 4 (Optional): Selecting 'Proceed as-is'
- Select 'Proceed as-is' if you'd like to proceed with your order despite the alert.
- Follow the guided prompts about why you are proceeding as-is.
- Note: if you agree with the alert but still need to proceed, a reduction coping will be added to your order to support the seating appointment. An additional charge is added to your order.
Fixing a Detected Undercut
Step 1: Click into the undercut alert
- An alert will appear if AI flags a margin line undercut. Click it for more information.

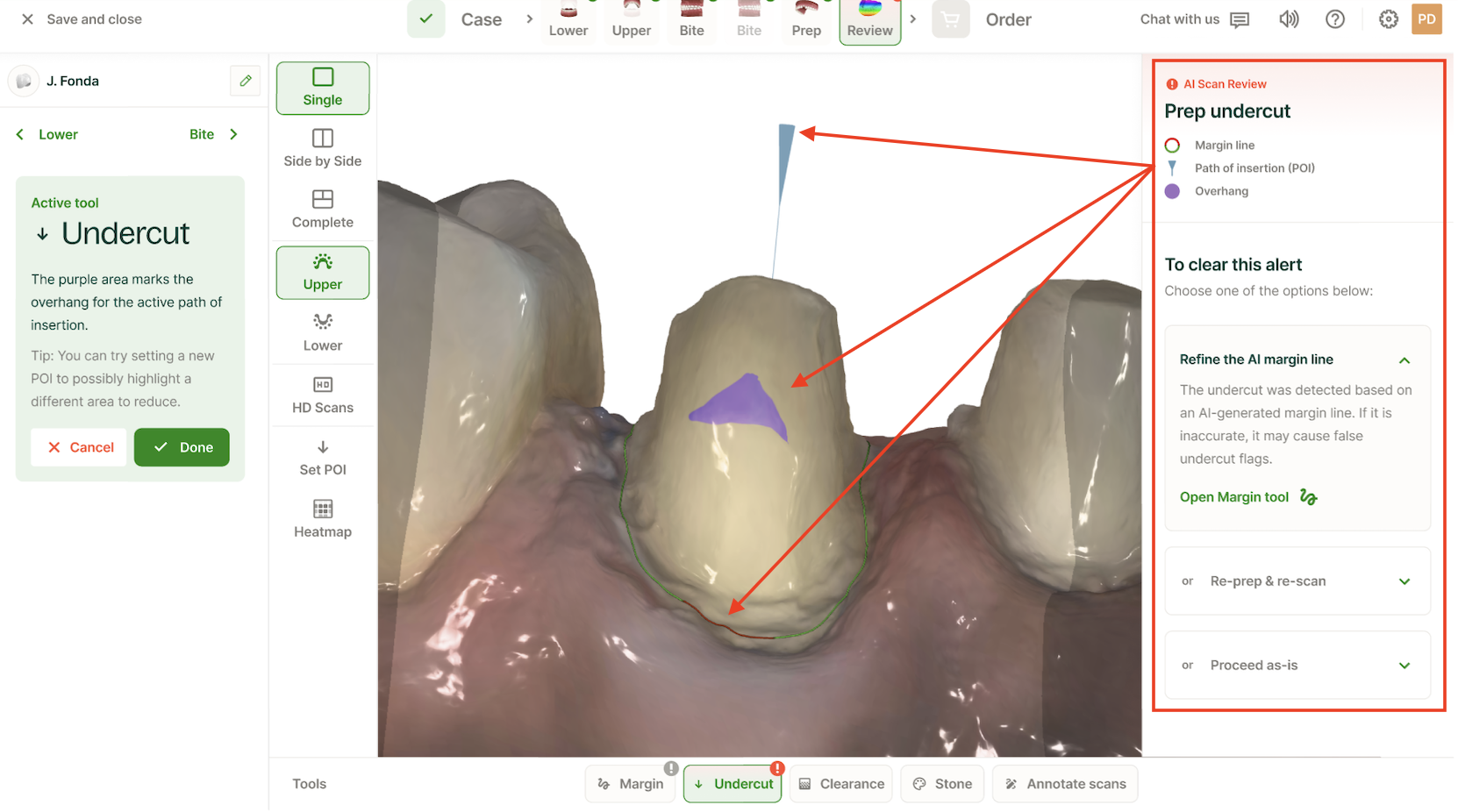

Step 2: Review areas of prep highlighted in purple
- Your scan will show:
- Purple overlay: Potential overhang
- Red line: Margin line with visibility impact
- Blue arrow: Proposed path of insertion (POI)
Step 3: Choose how to proceed
- You’ll be given three options:
-
Option A: Refine the AI margin line
- Click “Open Margin tool” to manually adjust the line.
- Drag dots along the margin to reposition and fine-tune it. (Margin visibility impacts accuracy.)
-
Option B: Refine your prep and re-scan
- Make adjustments to your prep, then select “Re-prep & rescan.”
- After rescanning, AI will reanalyse.
-
Option C: Proceed as-is
- Continue without making changes.
- If you agree with the issue but still want to proceed, a
-
Option A: Refine the AI margin line
