Instructions
1. On your desktop, right-click on an empty space. Go to “New” and click “Folder.” A folder will appear with highlighted blue text. Type in the patient's name and push “Enter” on your keyboard.
2. Place CD in the computer tower. Wait for pop-up to appear, and click on “RunNNTViewer.”
3. A document list will open. Double click on the patient’s name to launch the viewer.
4. Once CBCT scan opens, click on “File,” then “Save Axial Images in DICOM format,” then “Free Matrix.”
5. A pop-up will appear for the export location. Select the folder you just created on your desktop. Click “OK” to export images.

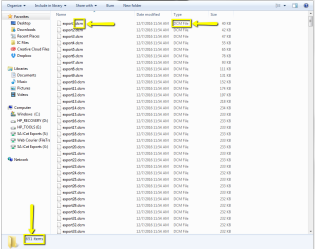

6. After the DICOM exports and saves, go to the patient’s folder and verify the .dcm files were exported correctly; there should be several hundred files.
7. Go to the desktop, right-click on the patient’s folder, go to “Send to,” and select “Compressed (zipped) folder.” A duplicate folder will be made with either a zipper on it, or a blue “Z.”
If following a Dual Scan Protocol, please zip scans individually and label accordingly; i.e: “Patient Scan” and “Denture Scan.”
8. Upload compressed folder to Dandy Portal or email ImplantSurgery@meetdandy.com
