Instructions
1. On your desktop, right-click on an empty space. Go to “New” and click “Folder.” A folder will appear with highlighted blue text. Type in the patient's name and push “Enter” on your keyboard.
2. In the patient database, click on the patient name. Under the “File Type,” click on “CT.”
3. A pop-up will appear. Click on the file, and click “Create New Workup.”
4. The patient scans will load. In the upper left corner, click on “Tools > Export DICOM,” then “Original Study.”
5. Select the folder you just created on the desktop and click “OK.”
6. You will return to this screen. Click “OK.” Your files will begin exporting.
7. Click on “OK” when the “Done” pop-up appears.

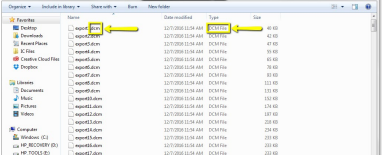

8. After the DICOM exports and saves, go to the patient’s folder and verify the .dcm files were exported correctly; there should be several hundred files.
9. Go back to the desktop, right-click on the patient’s folder, go to “Send to,” and select “Compressed (zipped) folder.” A duplicate folder will be made with either a zipper on it, or a blue “Z.”
If following a Dual Scan Protocol, please zip scans individually and label accordingly; i.e: “Patient Scan” and “Denture Scan.”
10. Upload compressed folder to Dandy Portal or email ImplantSurgery@meetdandy.com
