Instructions
1. On your desktop, right-click on an empty space. Go to “New” and click “Folder.” A folder will appear with highlighted blue text. Type in the patient name and push “Enter” on your keyboard.
2. Go to patient scan and click on “Output,” then “DICOM Exam Export.”
3. Select “Image > Export,” and click “Export Third Party DICOM.”
4. Select “0.4 Voxels,” and click “OK.”
4. Click “dcm” and under the Export Directory section, click the “…” box to select the folder on your Desktop labeled with the patient’s name. Click “Open” then “Save.”
5. Verify that the patient folder has been selected then click “OK”. The files will begin exporting.

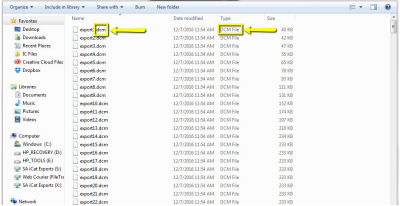

6. After the DICOM exports, go to the patient’s folder and verify the .dcm files were exported correctly; there should be several hundred files.
7. Go back to the desktop, right-click on the patient’s folder, go to “Send to,” and select “Compressed (zipped) folder.” A duplicate folder will be made with either a zipper on it, or a blue “Z.”
If following a Dual Scan Protocol, please zip scans individually and label accordingly; i.e: “Patient Scan” and “Denture Scan.”
8. Upload compressed folder to Dandy Portal or email ImplantSurgery@meetdandy.com
