Instructions
1. On your desktop, right-click on an empty space. Go to “New” and click “Folder.” A folder will appear with highlighted blue text. Type in the patient name and push “Enter” on your keyboard.

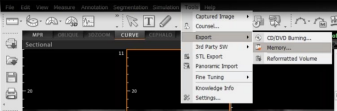

2. In your VaTech, open your image, click on “Tools,” click “Export,” and click “Memory.”
3. Select the folder you just created on your desktop. Click “OK” to export images.

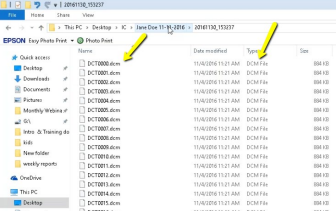

4. After the DICOM exports and saves, go to the patient’s folder and verify the .dcm files were exported correctly; there should be several hundred files.
4. Go back to the desktop, right-click on the patient’s folder, go to “Send to”, and select “Compressed (zipped) folder.” A duplicate folder will be made with either a zipper on it, or a blue “Z.”
If following a Dual Scan Protocol, please zip scans individually and label accordingly; i.e: “Patient Scan” and “Denture Scan.” Send To > Compressed Folder
5. Upload compressed folder to Dandy Portal or email ImplantSurgery@meetdandy.com
