Instructions
1. On your desktop, right-click on an empty space. Go to “New” and click “Folder.” A folder will appear with highlighted blue text. Type the patient's name and press the “Enter” key on your keyboard.

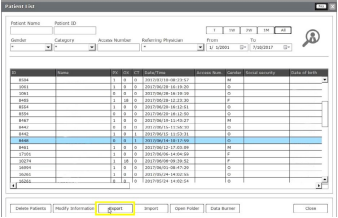

2. Select the patient in the database and click “Export.”
3. Select the scan and click the button “...”, and a pop-up will appear for the save location. Select the folder we just| |made on the desktop and click “OK”.
4. The pop up will disappear. Verify you have the correct folder selected and click “Run.” A bar will begin loading.

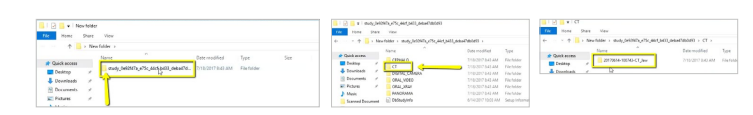

5. After the DICOM exports and saves, go to the patient’s folder and double-click to open it. Double-click on the study. Then double-click on “CT.” Next, double-click on the “CT_Jaw” folder and verify that the .dcm files were exported correctly; there should be several hundred files
6. Right-click on the patient’s folder, go to “Send to,” and select “Compressed (zipped) folder.” A duplicate folder will be made with either a zipper on it, or a blue “Z.”
If following a Dual Scan Protocol, please zip scans individually and label accordingly; i.e, “Patient Scan” and “Denture Scan.”
7. Upload compressed folder to Dandy Portal or email ImplantSurgery@meetdandy.com
