Using the Trios 5 Scanner Wand Buttons

This detailed guide covers the use of the Scan and Remote buttons. These buttons help you easily navigate scan pages and evaluate scans while sitting with your patient.

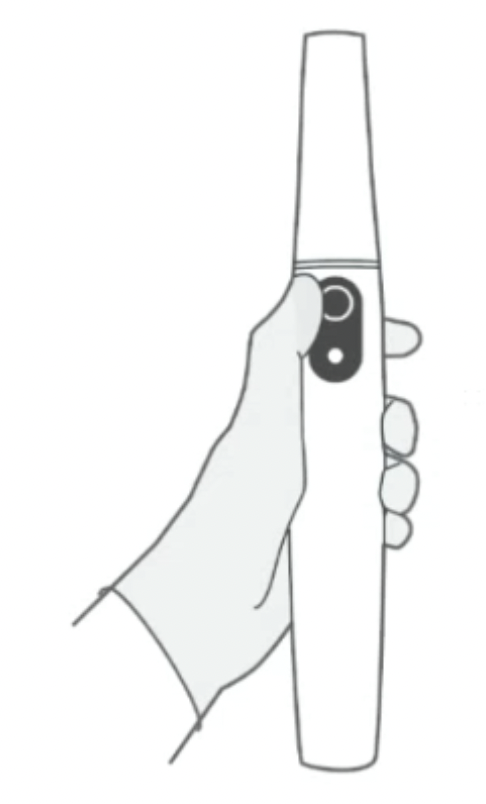

The Scan Button: Navigation Made Simple



Screen Shot 2024-02-21 at 7.42.24 PM.pngScreen Shot 2024-02-21 at 7.43.37 PM.pngStarting and Stopping Scans

  • To Begin Scanning: Press the Scan Button once. Press again to halt scanning.

Accessing the Navigation Wheel

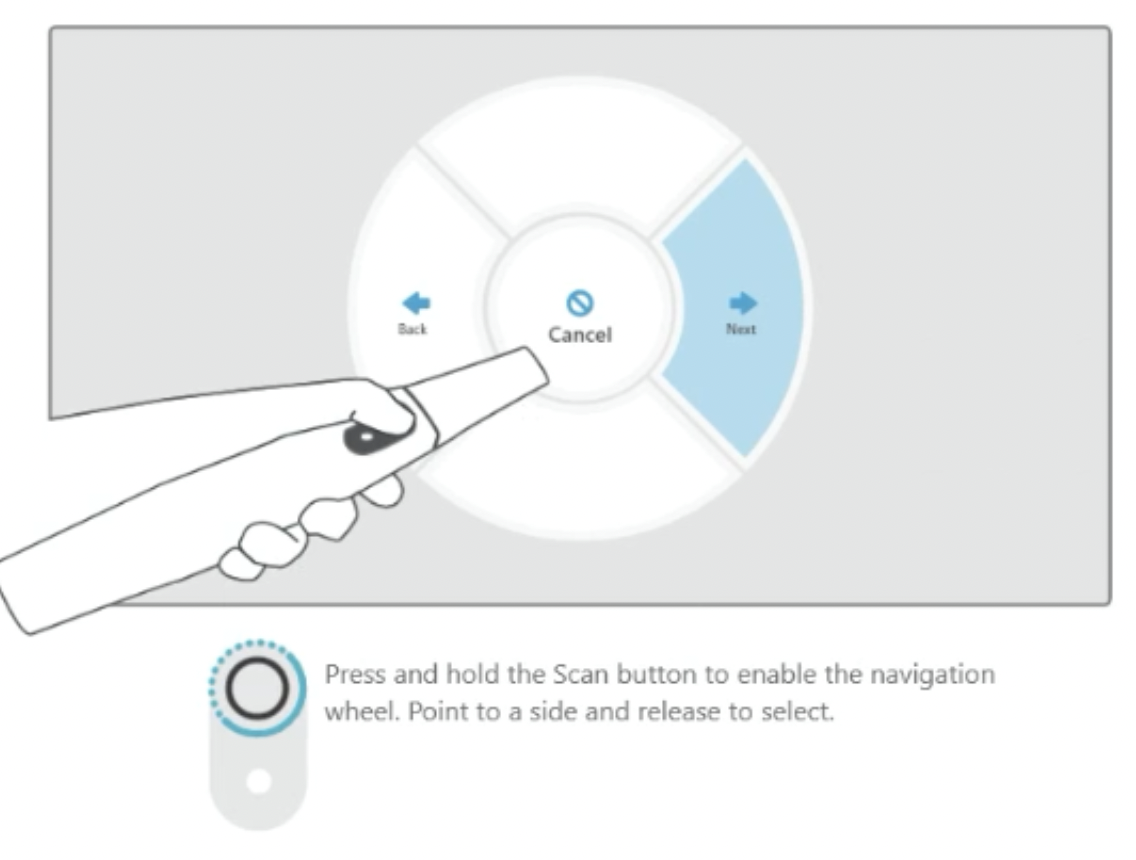

  • To Use the Navigation Wheel: Press and hold the Scan Button on any scanning page (Lower, Upper, Bite1, and Bite2). The Navigation Wheel appears exclusively on these pages for easy navigation between scans.
  • To Navigate: Hold the button, point the wand toward your desired direction on the wheel, and release the button to select.

Screen Shot 2024-02-21 at 7.47.27 PM.png

The Remote Button: Scan Evaluation and Interaction

Screen Shot 2024-02-21 at 7.42.24 PM.pngScreen Shot 2024-02-21 at 7.45.07 PM.png

Activating Remote Mode

  • To Enter Remote Mode: Press the Remote Button once. This mode converts your wand into a versatile tool for interacting with on-screen options.

Using the Wand in Remote Mode

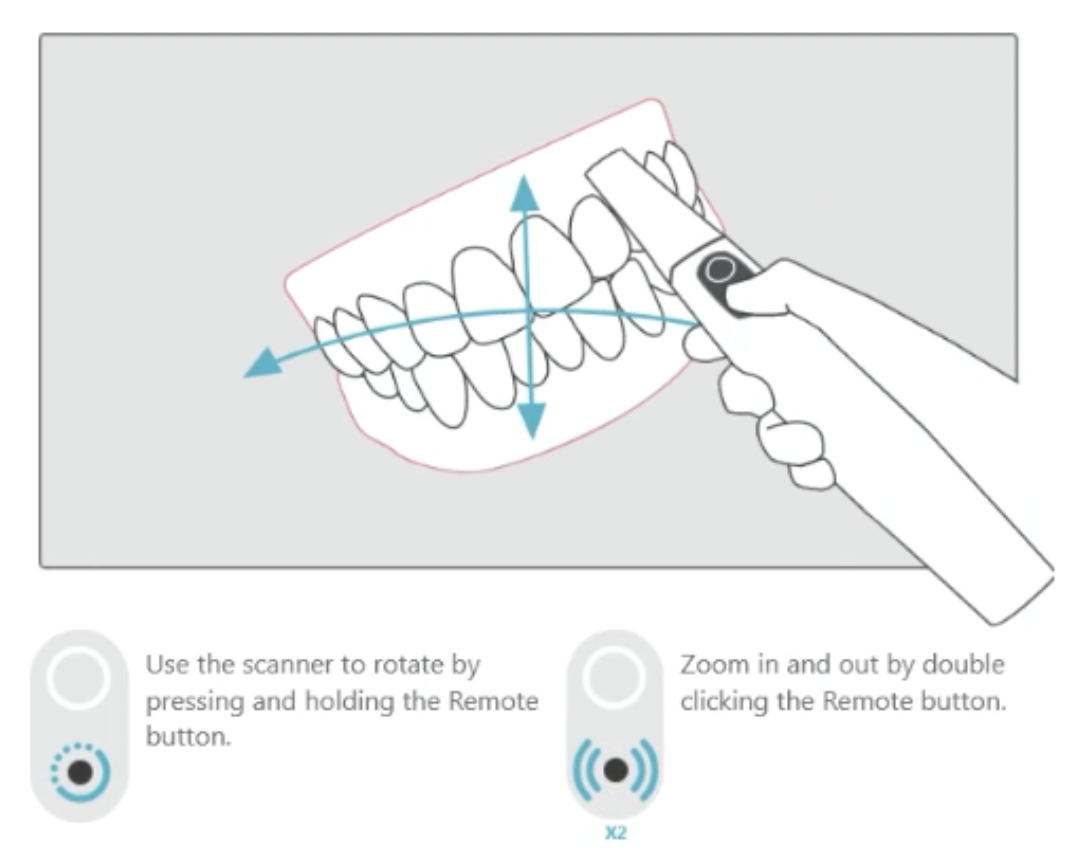

  • Rotating Scans: Press and hold the Remote Button and rotate the wand to examine different angles of your scans.
  • Zooming In and Out: Double-click the Remote Button to zoom in and out of the scan for detailed inspection.

Screen Shot 2024-02-21 at 7.46.35 PM.png

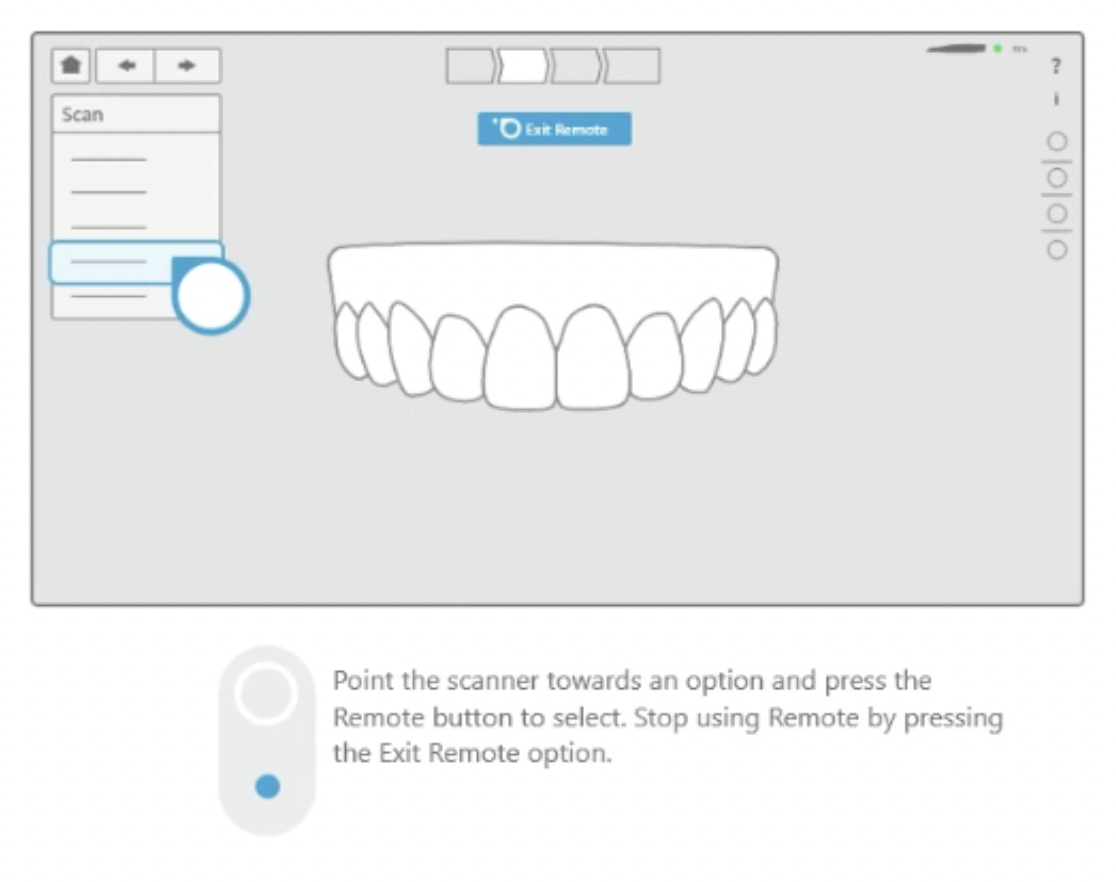

  • Selecting On-Screen Options: Point the wand at an on-screen option and press the Remote Button again to make your selection.

Screen Shot 2024-02-21 at 7.47.01 PM.png

  • Exiting Remote Mode: Choose the 'Exit Remote' option on the screen to leave Remote Mode.

Enhancing Your Workflow

Understanding and utilizing these functionalities will streamline your scanning process, allowing for more efficient case management and a better patient experience. Practice using both buttons to become adept at quickly navigating through scans and meticulously evaluating them.

For additional support or to address any inquiries, contact our Support Team.
