Unite Night Guard Case Workflow

This guide outlines the step-by-step process to submit Night Guard cases to Dandy using Unite software. From initial case creation to final submission, we've got you covered. Follow these instructions to ensure a smooth submission process.

Step 1 - Setup Patient and Lab Details

• Initiate Case Setup: Create a new patient profile or add a case under an existing patient.

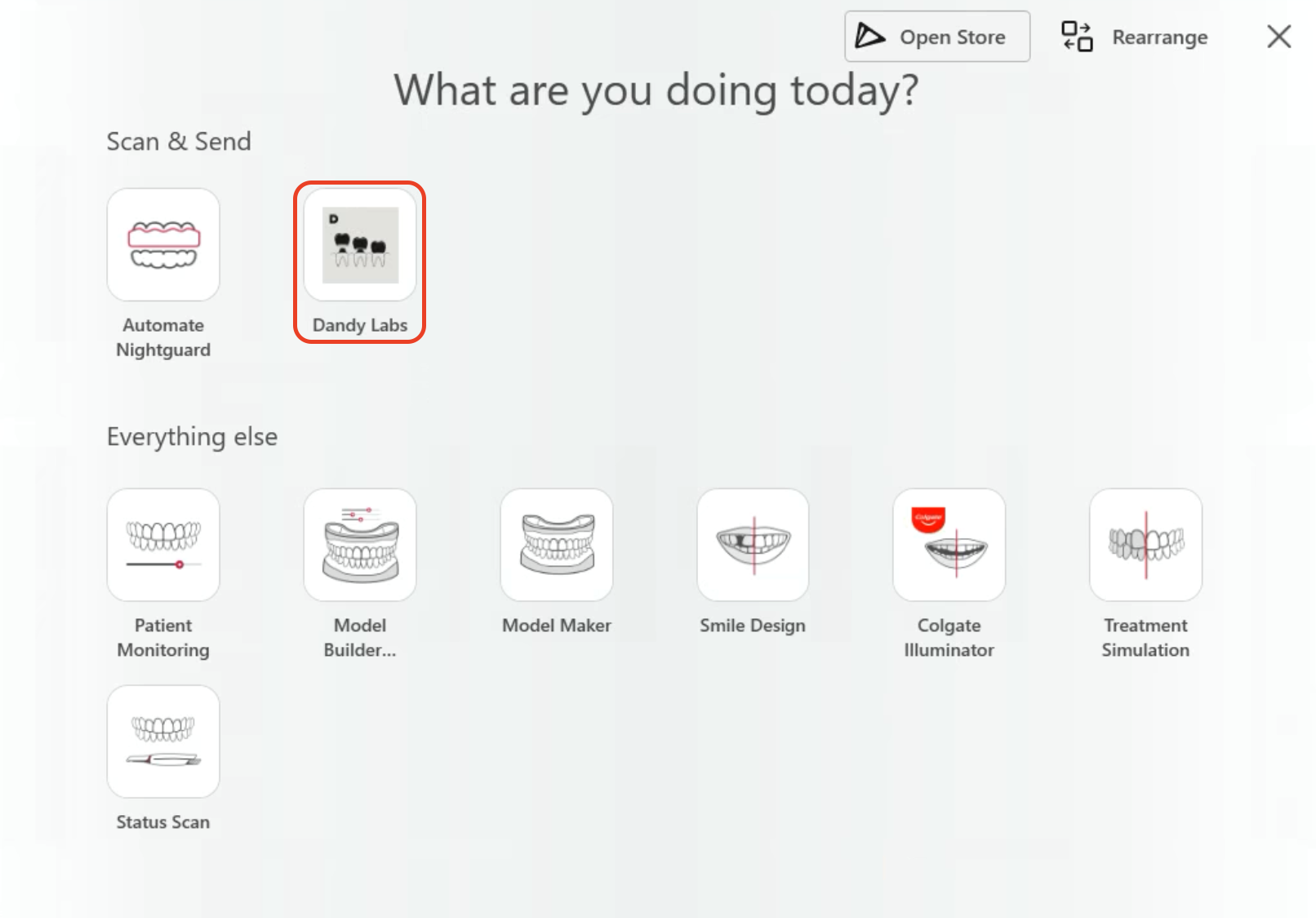

• Select Dandy Labs: Choose 'Dandy Labs' under 'Scan & Send' to ensure your case is correctly routed to Dandy. If 'Dandy Labs' isn't an option, please contact our Support Team.

Step 2 - Select Clinical Case Details

In Unite, you will select the case details required to capture the scans to fabricate the night guard. You can select and provide more specific case details when you complete the Dandy Lab slip to submit your case.

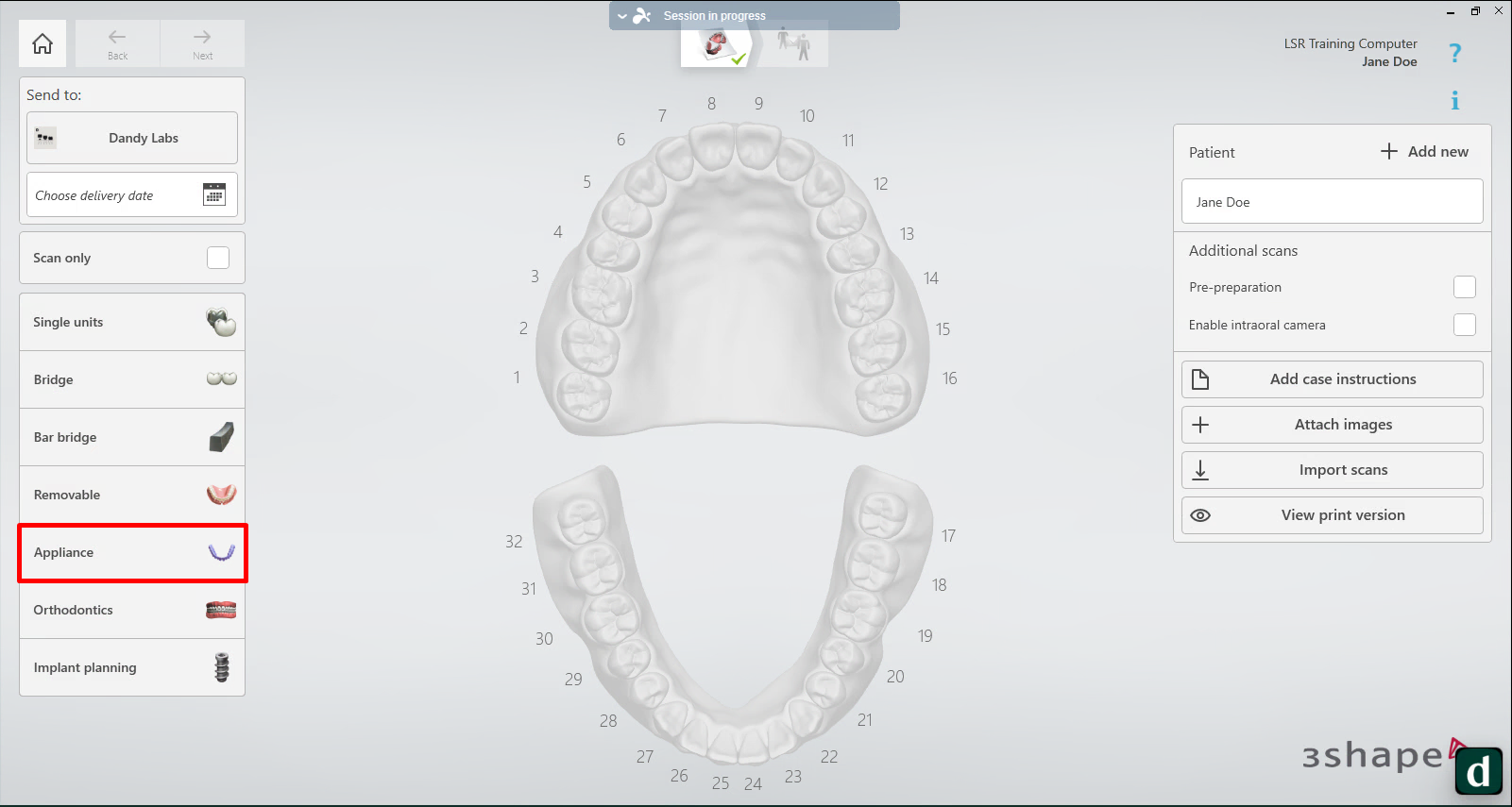

• Case Type: Select "Appliance" and click "Splint".

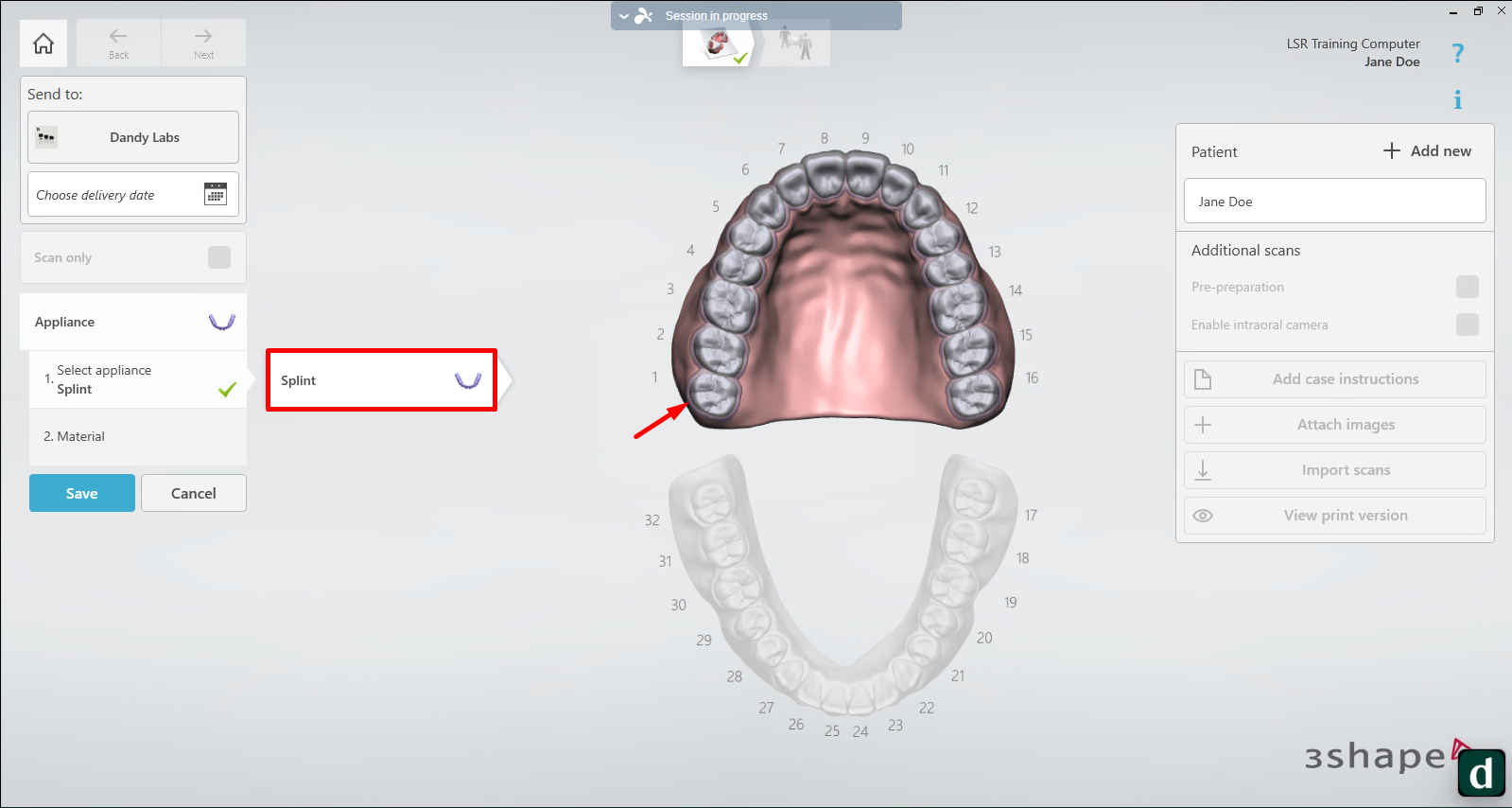

• Arch Selection: Select a tooth (it does not matter which one) on the corresponding arch that you would like to fabricate a night guard.

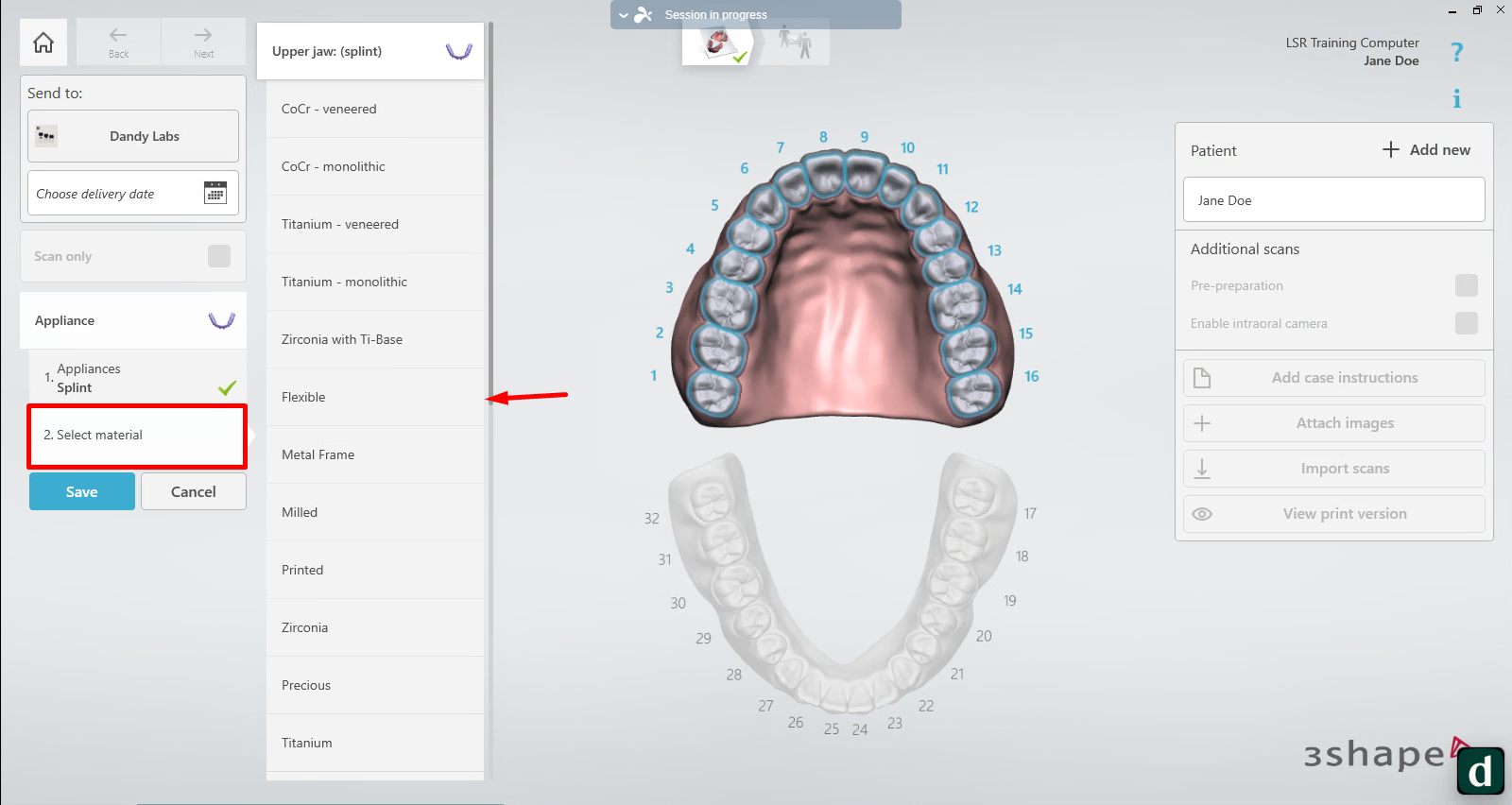

• Material Selection: Navigate to "Select Material" and select "Flexible" from the dropdown menu.

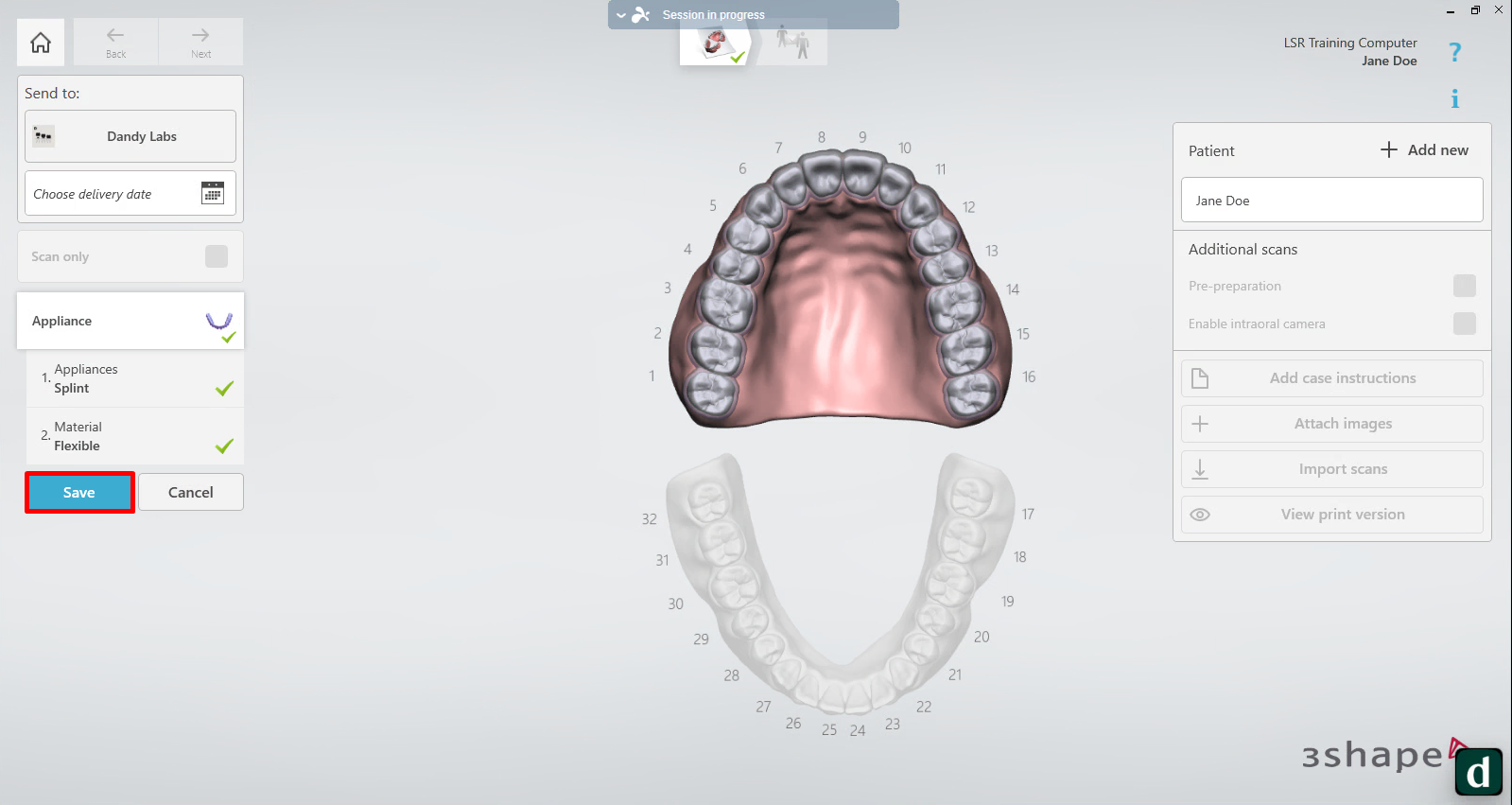

• Saving and Setting a Delivery Date: Click "Save" and input a delivery date.
  • Note: While required in Unite, the 'Delivery Date' you select doesn't determine the actual delivery date of your restoration. Upon completing the case's lab slip, you'll see an estimated delivery time.

Step 3 - Complete Intraoral Scans

Before scanning, please review our article on Night Guard Scanning Best Practices.

• Lower Mandibular Arch Scan: Begin with the lower arch, following the path of occlusal surfaces to linguals, and conclude with buccal. Remember to divide your buccal scans at the midline for precision.
• Upper Maxillary Arch Scan: Flip your mirror tip for the upper arch scan. The scanning sequence remains the same: occlusals, linguals, and buccals.
• Bite Scans: Conduct left and right bite scans, ensuring the patient is in their natural occlusion. Listen for the chime indicating a successful scan.

Step 4 - Submit Your Case

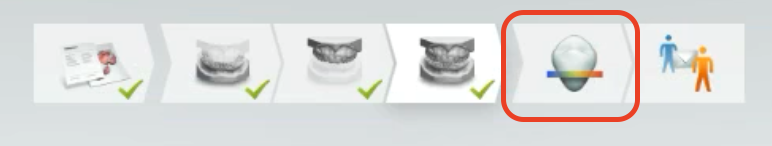

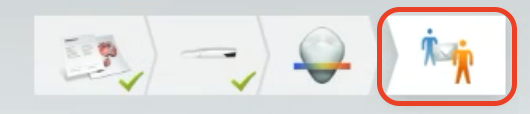

• Analysis and Post-Processing: Utilize the analysis page to review your scans. Select "Post process" and "Send" for case submission.

• Complete the Dandy Lab Slip: Fill out the Dandy Lab slip with all required information. Include additional instructions or attachments as needed.
  • Note: Completing the Dandy lab slip entirely is essential for the case to move forward into planning and fabrication.

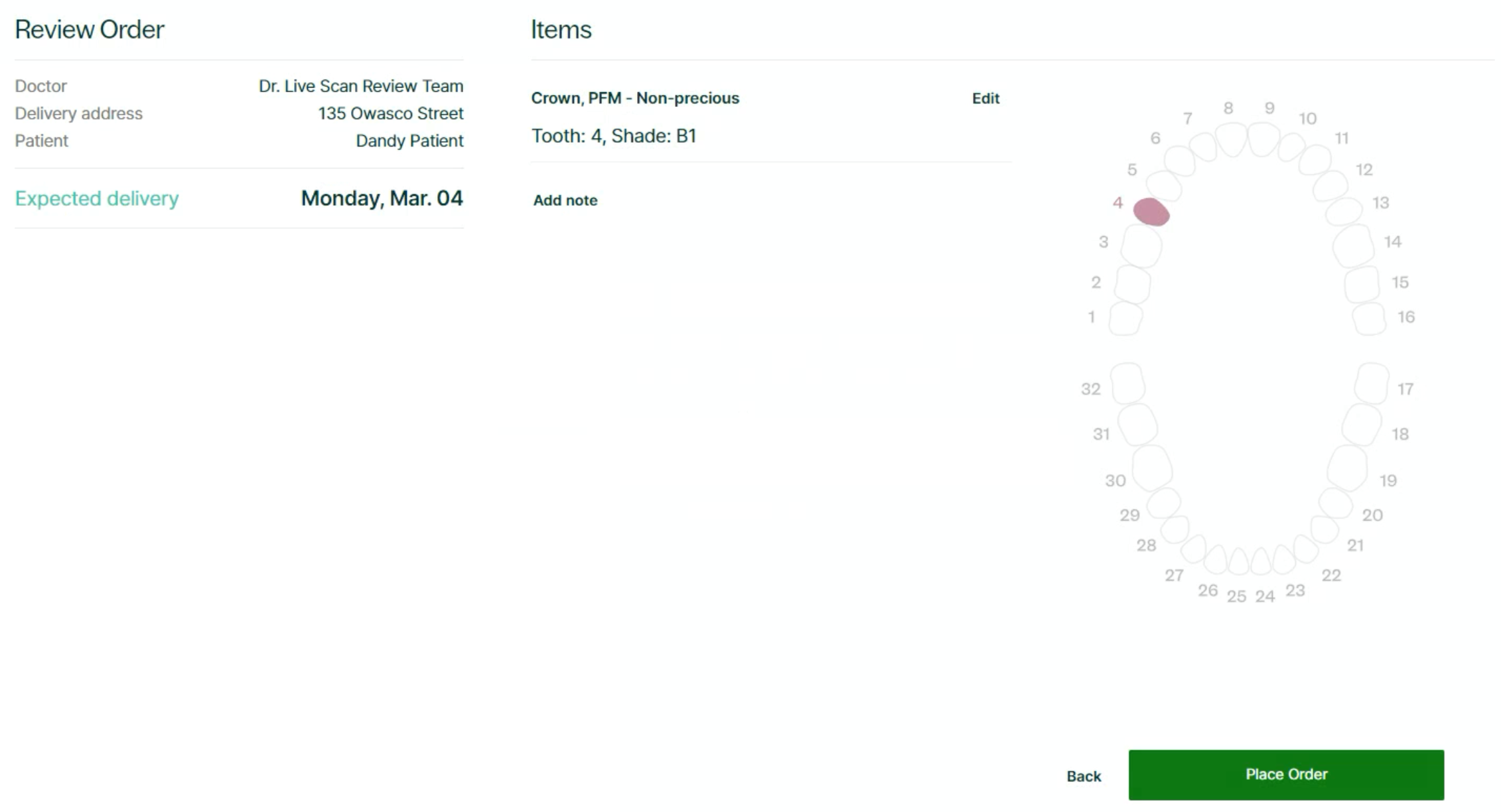

• Placing Your Order: Please continue to select the green buttons at the bottom of the screen to confirm all details and select 'Place Order.'
  • Note: If you return to the Unite screen before clicking 'Place Order' your order will not be submitted to Dandy and will have a status of 'Pending' in your Dandy Portal.

Conclusion
